MachXO5-NX is Lattice’s secure control FPGA product family. Known for features such as embedded flash, high I/O, and best-in-class security, Lattice’s secure control FPGAs are widely used for system control and management applications in the Compute, Communications, and Industrial market segments. MachXO5-NX improves upon previous generations with higher logic density, faster interfaces, larger internal memory, and enhanced security features enabling more complex board management designs.
Lattice MachXO5-NX™ TDQ devices, built on Lattice’s low power Nexus platform, expand the MachXO5™-NX FPGA family’s capabilities for secure control applications with root-of-trust features supporting state-of-the art classical cryptography and CNSA2.0 approved Post-Quantum Cryptography (PQC) to address the increased threat to system security. With full suite of CNSA2.0 prescribed PQC algorithm support, these devices ensure robust protection against emerging quantum threats, future-proofing your security infrastructure.
Higher Density, More Memory for Complex Control Applications – Up to 100K logic density, 7.3Mb internal memory , and 55Mb dedicated user flash memory (UFM).

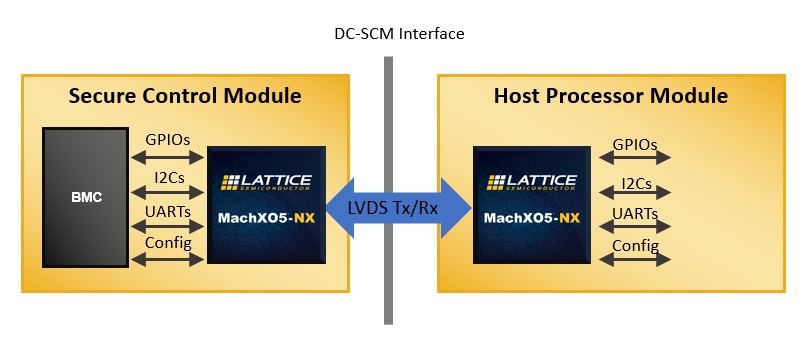

Fast and Proven I/O Capabilities – Consistent robust I/O operation as previous generation, 1.0V I/O supporting modern CPU, high speed LVDS, MIPI and PCIe interfaces.
Device Security Protects Intellectual Property – Root-of-Trust hardware solutions with internal flash configuration, AES256 bitstream encryption, up to ECDSA-521 and RSA4K bitstream authentication, configuration port lock, and run-time security.

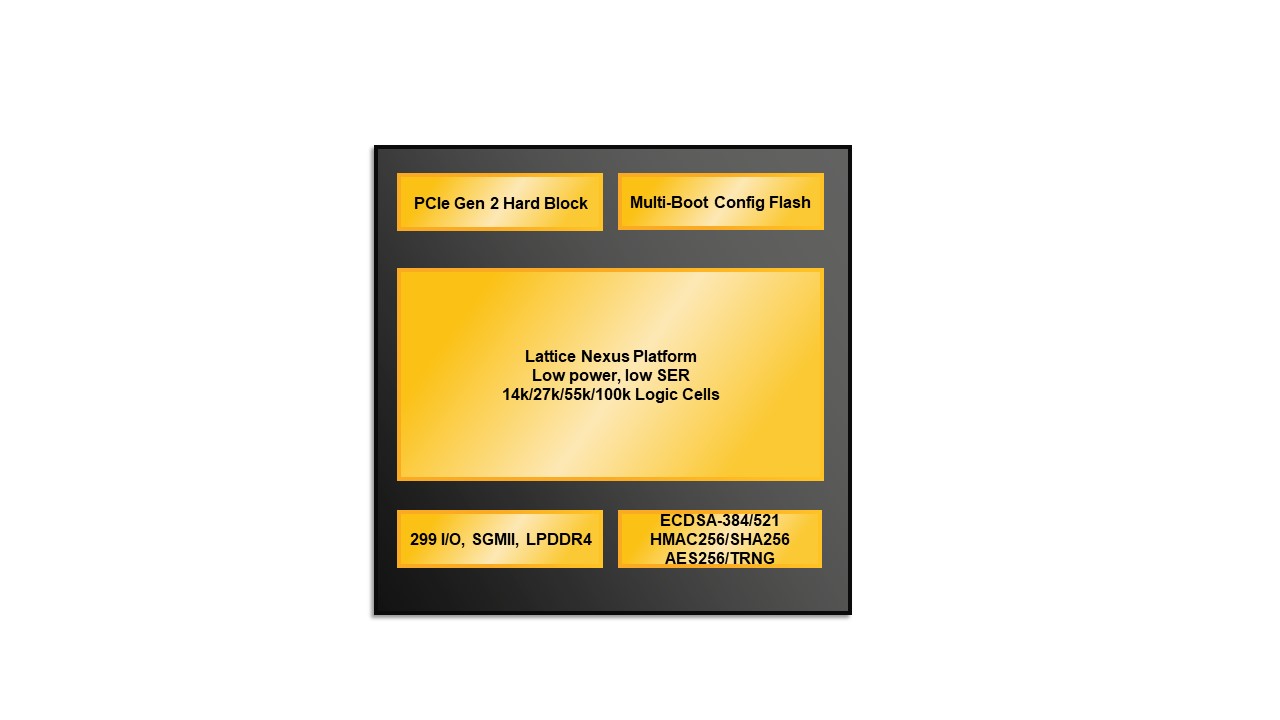

Extended density range and features available in the Mach XO5-NX family.
