Lattice Solutions

Reference Design

​​I/O Aggregation Over USB with CrossLinkU-NX Reference Design​

USB to IO Bridging Reference Design Create plug-and-play peripheral expansion on USB-enabled FPGA & signal protocol conversion from USB to I2C, SPI, & GPIO.

CrossLink-NX

USB, USB2, USB3, I2C, SPI, JTAG, LVDS, SLVS, FTDI

Reference Design

GHRD/GSRD Reference Design

The Golden Hardware and Software Reference Design comprises of components for developing various kind of applications using CertusPro-NX Versa Board.

CertusPro-NX, Avant-E

GHRD, GSRD, RISC-V, AXI4, MPMC, Lattice Automate, Defense

Reference Design

Barcode Detection Reference Design

Exhibits the barcode detection using CertusPro-NX Voice & Vision Machine Learning Board & its camera barcode detection potential based on Yolov5 NN models.

CertusPro-NX

Machine Learning/AI, Lattice sensAI, Barcode Detection

Reference Design

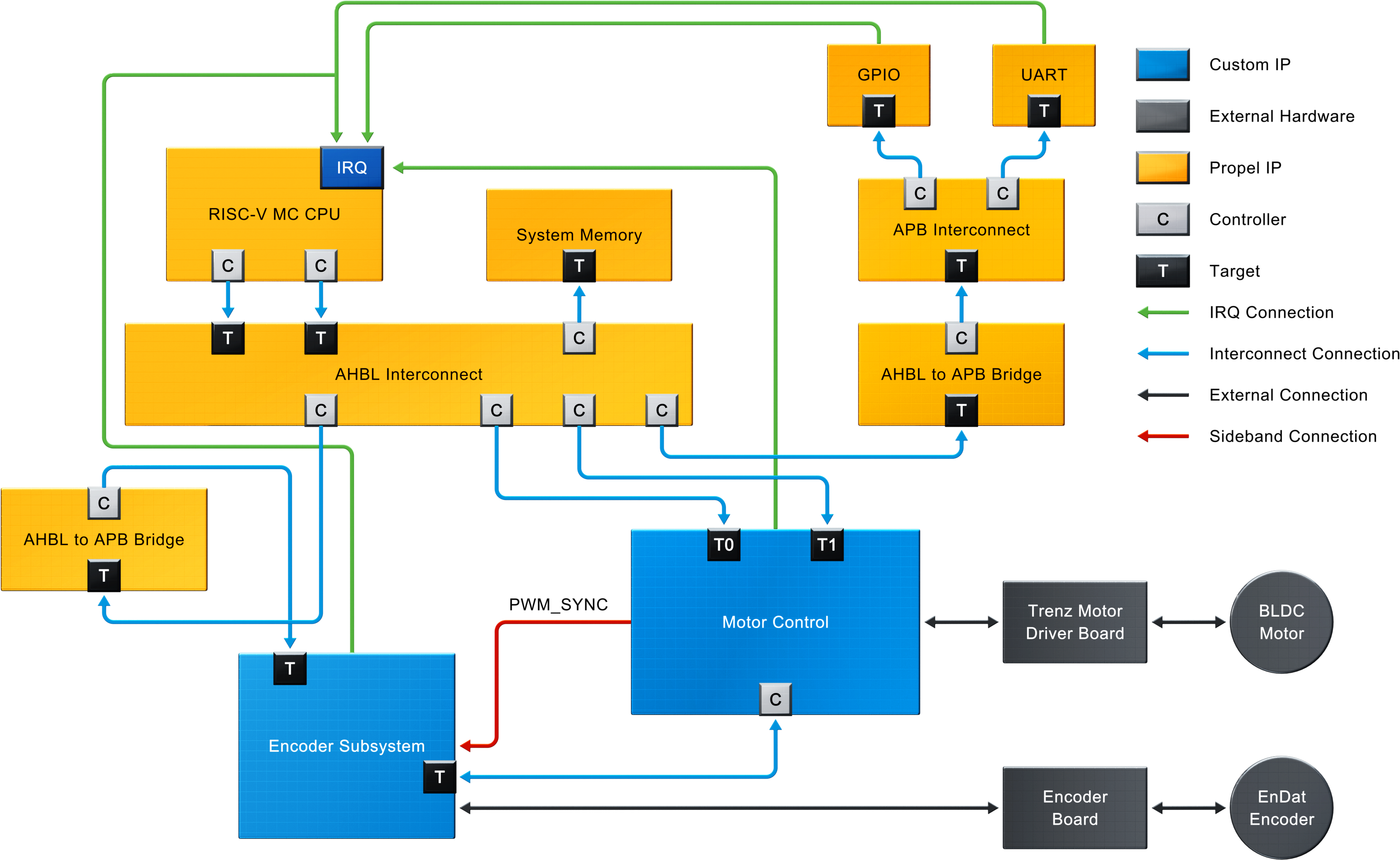

Close Loop BLDC Motion Control Reference Design

Implementation of Industrial high-end encoder on real-time position feedback for speed control in the Closed-loop BLDC motor control system

Certus-NX

BLDC, RISC-V, Avionics

Reference Design

CrossLinkU-NX UVC Streaming Reference Design

UVC streaming Reference Design provides a template for video streaming from camera sensor over the USB hard IP in the CrossLinkU-NX device to a USB host.

CrossLink-NX

UVC, MIPI, USB, Video Streaming, Avionics

Reference Design

Customizable HSB Sensor Interfaces Reference Design

The design specifically targets MIPI CSI-2 camera sensors and offers a flexible architecture capable of integrating multiple camera inputs based on system requirements.

CertusPro-NX

HSB, Sensor Interface, MIPI, CSI-2, Customizable HSB

Reference Design

Defect Detection Reference Design

Enables real-time identification and classification of defects in manufacturing, assembly, and inspection processes at the edge.

CertusPro-NX

D-PHY, OSPI, PCIe, USB, SPI, I2C, AXI, APB, Lattice sensAI

Reference Design

Holoscan Sensor Bridge Reference Design

This design integrates seamlessly with the NVIDIA Holoscan Sensor Bridge, offering configurable FPGA IP, system control, and a full-stack data acquisition pipeline for IGX Orin and Orin AGX platforms.

CertusPro-NX, CertusPro-NX Sensor to Ethernet Bridge Board

HSB, Sensor Interface, MIPI, CSI-2, NVIDIA Holoscan

Reference Design

Lattice Nexus Device Multi-Boot Reference Design

Multi-Boot mode supports booting from up to 6 patterns that reside in an external SPI flash device, up to 3 patterns for MachXO5-NX internal flash memory.

MachXO5-NX, CrossLink-NX, CertusPro-NX, Certus-NX

Multi-boot, SPI

Reference Design

Lattice ORAN™ 1.0 Security Reference Design

Lattice ORAN enable secure out-of-band communication over I3C/SMBus/I2C/PCIe and provide crypto-256 and Crypto-384 services to customers through software APIs.

CertusPro-NX

5G, PCIe, SPI, Lattice ORAN

Reference Design

Lattice Sentry 4.0 SCM and HPM CPLD Reference Design

​​This is a CPLD design template for the Secure Control Module (SCM) and Host Platform Module (HPM) for the Sentry 4.0 Server solution platform.​

MachXO3D, MachXO5-NX

SCM, HPM, CPLD, Lattice Sentry, Security, Defense, LTPI, MPESTI, SGPIO, eSPI, OCP

Reference Design

MIPI CSI-2 to HDMI Reference Design

MIPI CSI-2 to HDMI Reference Design includes the synthesizable MIPI-HDMI core design & stimulus generators, checkers, & a testbench necessary to simulate the design

Avant-E

Lattice mVision, MIPI, HDMI, CSI-2, I2C

Reference Design

MPESTI Initiator Reference Design

MPESTI Initiator Reference Design provides the solution template which is compliant with the MPESTI Base Specification.

Avant-E, MachXO5-NX, MachXO3 – 制御/ブリッジFPGA, MachXO3D

MPESTI, UART, APB, AHB, RISC-V, OCP

Reference Design

Multi Object Detection Reference Design

Enables real-time detection, classification, and tracking of multiple objects in images and video streams at the edge.

CertusPro-NX

D-PHY, OSPI, PCIe, USB, SPI, I2C, AXI, APB, Lattice sensAI

Reference Design

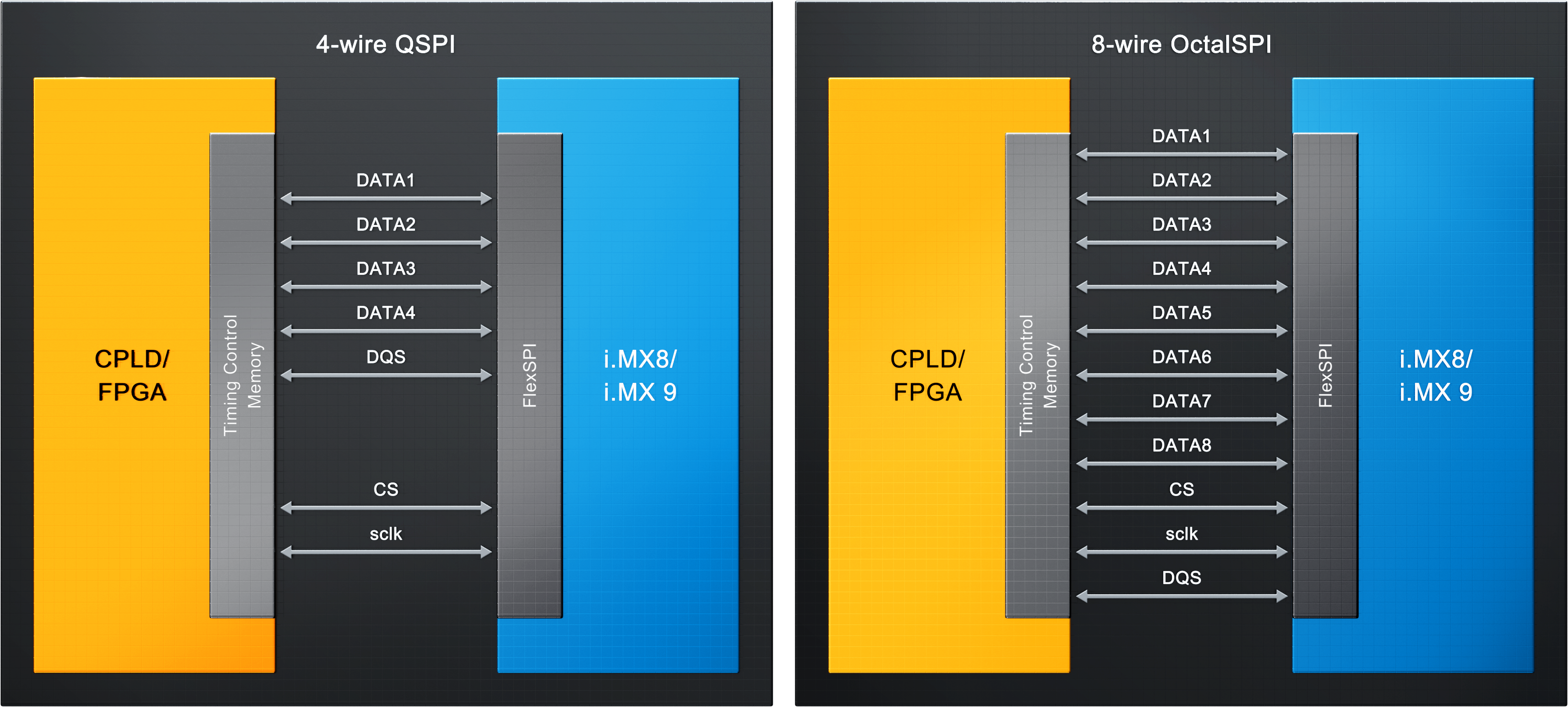

Lattice QSPI to NXP MPU Interface Reference Design

This Lattice and NXP joint solution is designed to implement FlexSPI communication and expedite deployment using the Lattice ECP5 Evaluation Board.

ECP5 / ECP5-5G

MPU, FlexSPI, FlexIO, IMX, Avionics

Reference Design

APB to AHB-Lite Bridge Reference Design

The APB to AHB-Lite Bridge Reference Design provides an interface between the low power APB and the high-speed AHB-Lite.

MachXO3D, MachXO3 – 制御/ブリッジFPGA, MachXO2

APB, AHB, AMBA

Reference Design

CertusPro-NX PROFINET Stack Reference Design

An industrial Ethernet standard enabling real-time data exchange between PLCs and devices like sensors and actuators for precise automation control.

CertusPro-NX

PROFINET, ICMP, ADIN1200 Module

Reference Design

CrossLinkU-NX USB3 Vision Reference Design

A design provides a template for video streaming from camera sensor over USB using the USB hard IP in a CrossLinkU-NX device.

CrossLink-NX

U3V, USB3, Vision

Reference Design

DisplayPort & Video Scaler Reference Design

The Lattice Drive DisplayPort & Video Scaler Reference Design implements easy evaluation of various DisplayPort interface.

CertusPro-NX

Lattice Drive, DisplayPort, Video Scaling, FMC, Avionics

Reference Design

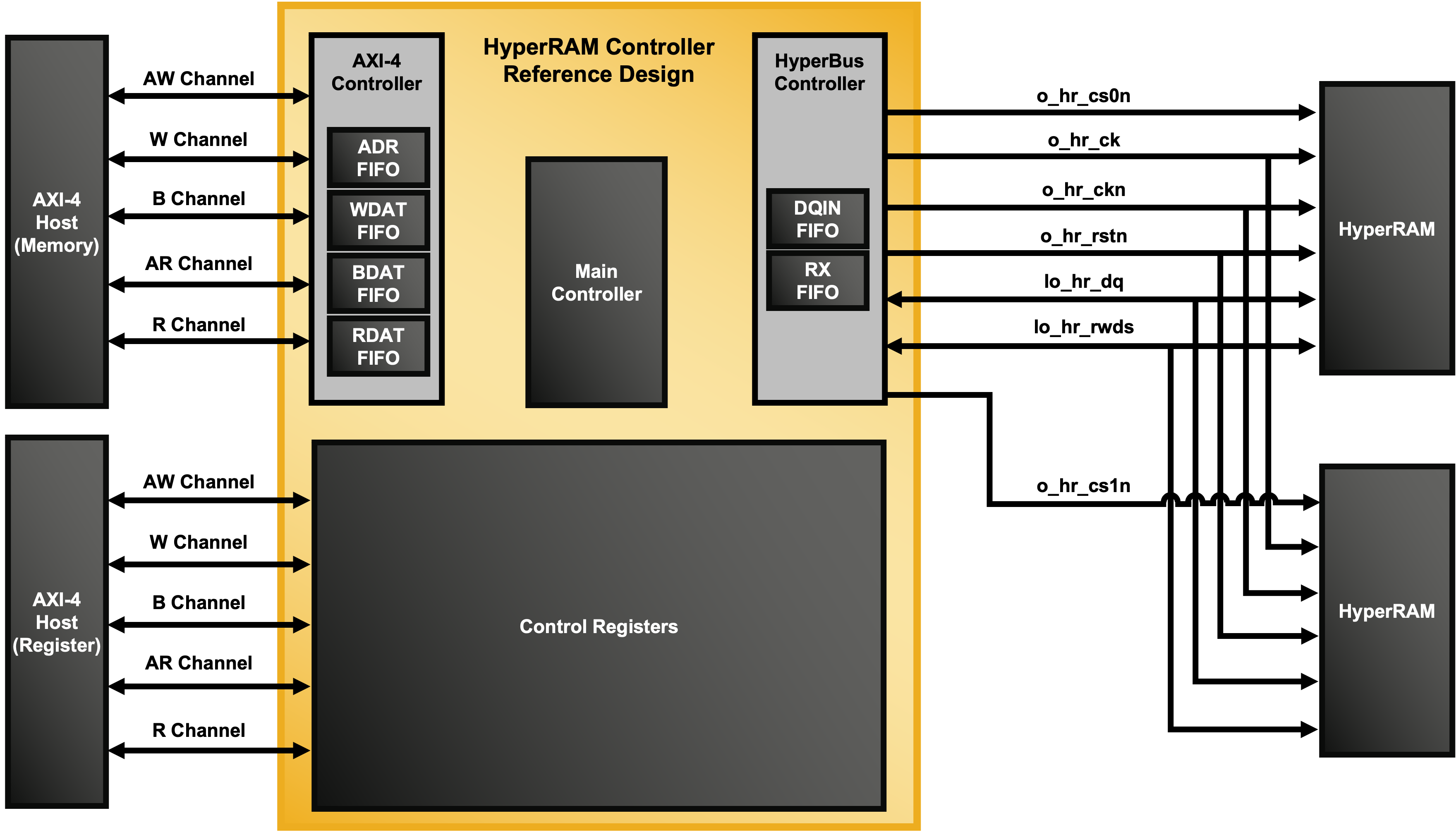

HyperRAM Memory Controller Reference Design

Implements First-Generation HyperRAM Specifications

CrossLink-NX

HyperRAM, EBR
