CrossLinkU-NX USB3 Vision Reference Design

Enable PCIe & TSE Comms with Dual Function Setup

Related Products


Newsletter Subscription

The Lattice Semiconductor CrossLinkU™-NX USB3 Vision (U3V) reference design provides a template for video streaming from camera sensor over USB using the USB hard IP in a CrossLinkU-NX device. The U3V is an interface standard for industrial cameras. This design implements the standard defined in the U3V specifications.

Features

  • USB3 Vision specifications, which include device identification, device control, and data streaming
  • Video data streaming at USB 3 SuperSpeed at 3.4 Gbps
  • Works with Pleora eBUS Player to control the imaging source parameters and view the video stream
  • RISC-V processor system with running Zephyr real-time operating system (RTOS)
  • Multiple video formats and resolutions:
    • RAW8, RAW10, Mono8, Mono10, and YCbCr422.
    • 1280x720 (at 45 FPS), 1920x1080 (at 30 FPS) and 3280x2160 (at 14 FPS).
    USB Vision - Graphic

Block Diagram

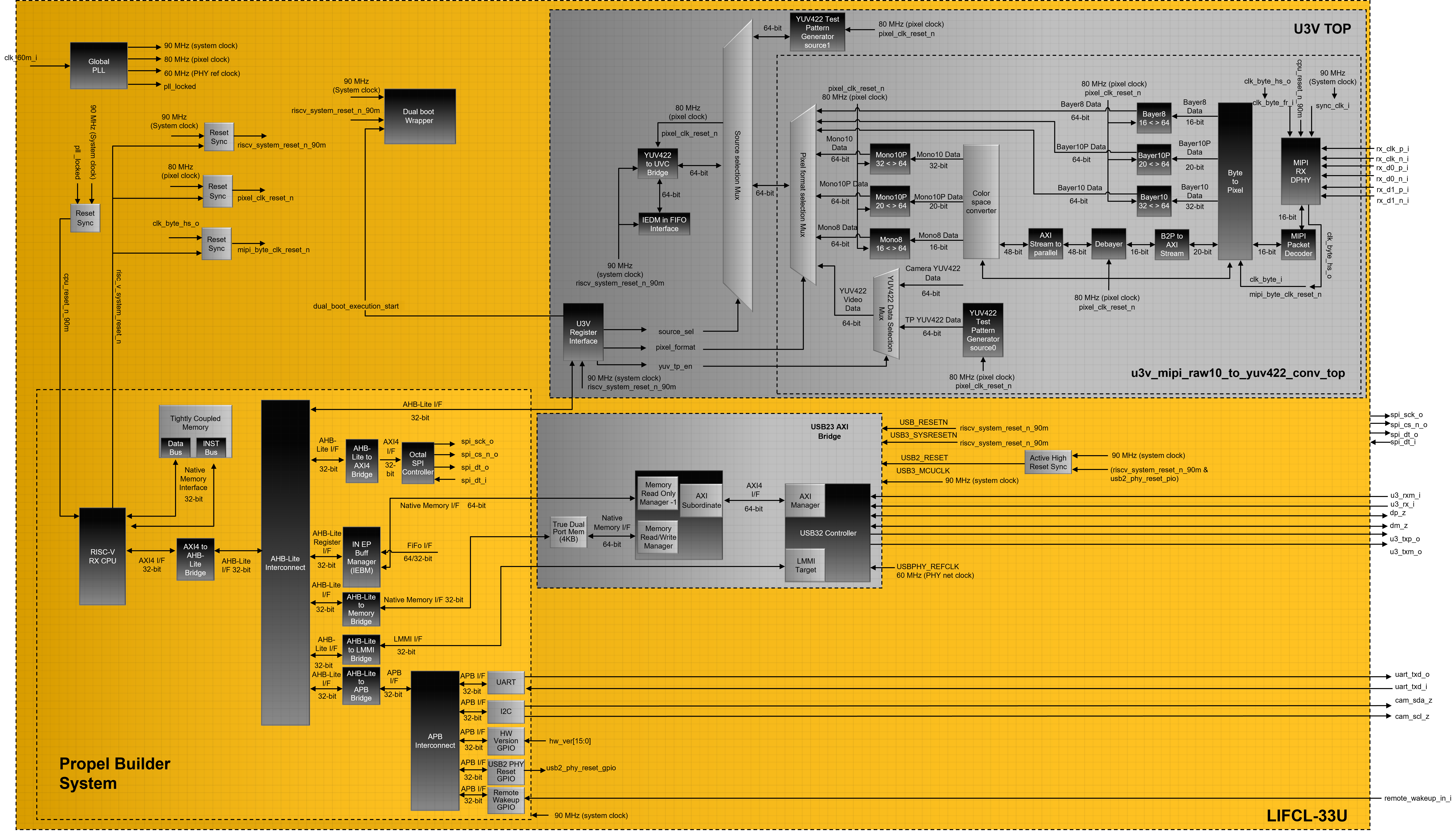

CrossLinkU-NX USB3 Vision Reference Design- Block DiagramExpand Image
CrossLinkU-NX USB3 Vision Reference Design Block Diagram for CrossLinkU-NX

Ordering Information

Ordering Part Number: LIFCL-33U-USB3-RD-EVN
Click here to find an authorized Lattice distributor near you

Documentation

Quick Reference
Downloads
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
CrossLinkU-NX USB3 Vision Reference Design - User Guide
FPGA-RD-02319 1.0 8/20/2025 PDF 3.8 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Select All
CrossLinkU-NX USB3 Vision Reference Design - Bitstream
8/20/2025 BIT 38.7 KB
