Lattice Solutions

Everything you need to quickly and easily complete your design

Share This Result >

Narrow Your Results



Solution Type
Device Support
Tags
Providers
Clear All

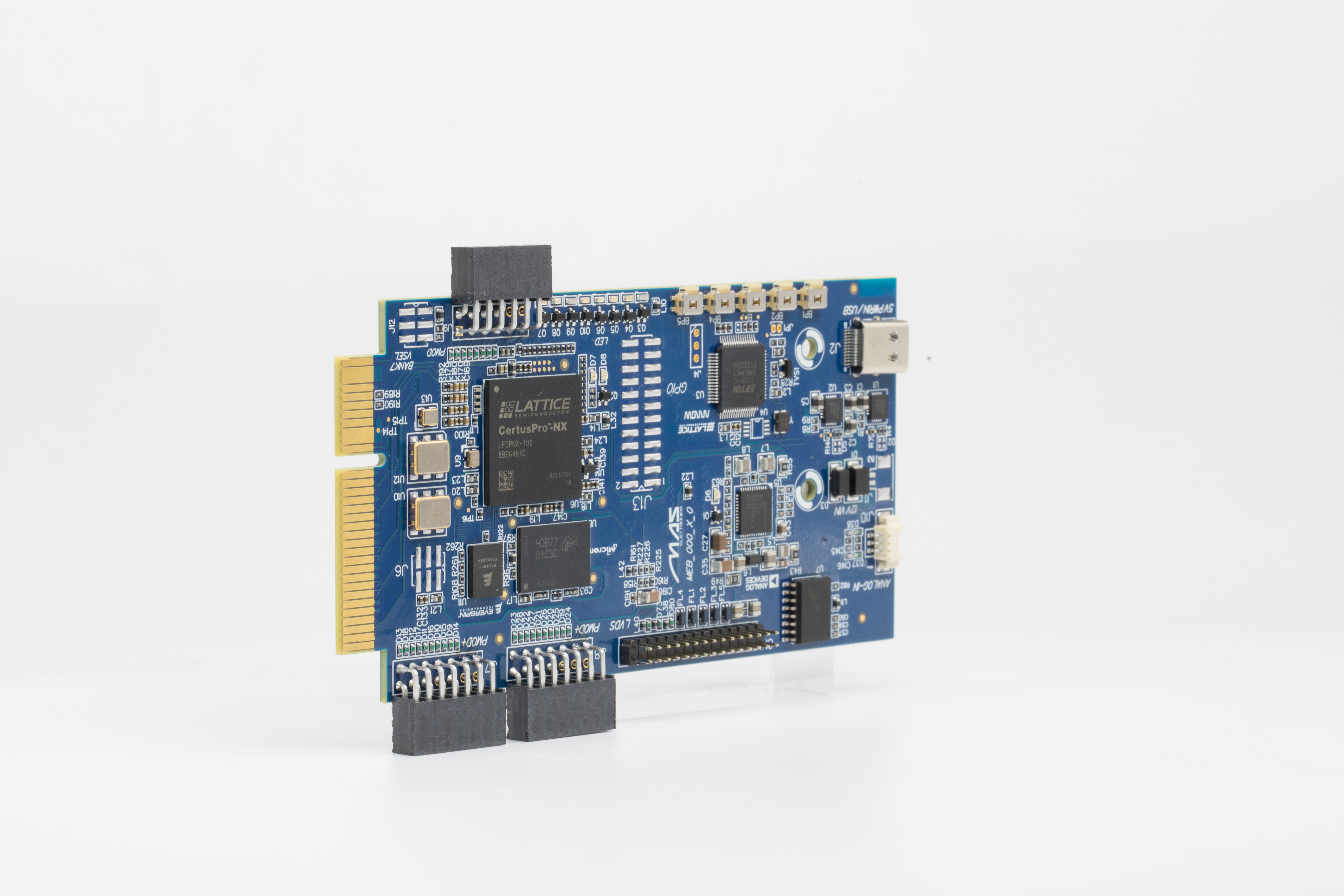

  • MAS Educational Board CertusPro-NX

    Board

    MAS Educational Board CertusPro-NX

    Product dedicated to Lattice CertusPro™ -NX, featuring: LPDDR4 x32, Octal SPI 64Mbyte, PCIe x4 Gen 3, PMOD and PMOD+ LVDS, DSI and CSI Onboard Lattice Programmer with USBC and PCIe Power Supply.
    CertusPro-NX
    Machine Learning/AI, RISC-V, PMOD, CAN, LCD panel, DDR Memories, PCIe, USB Type-C, CSI-2, Encryption
    MAS Educational Board CertusPro-NX

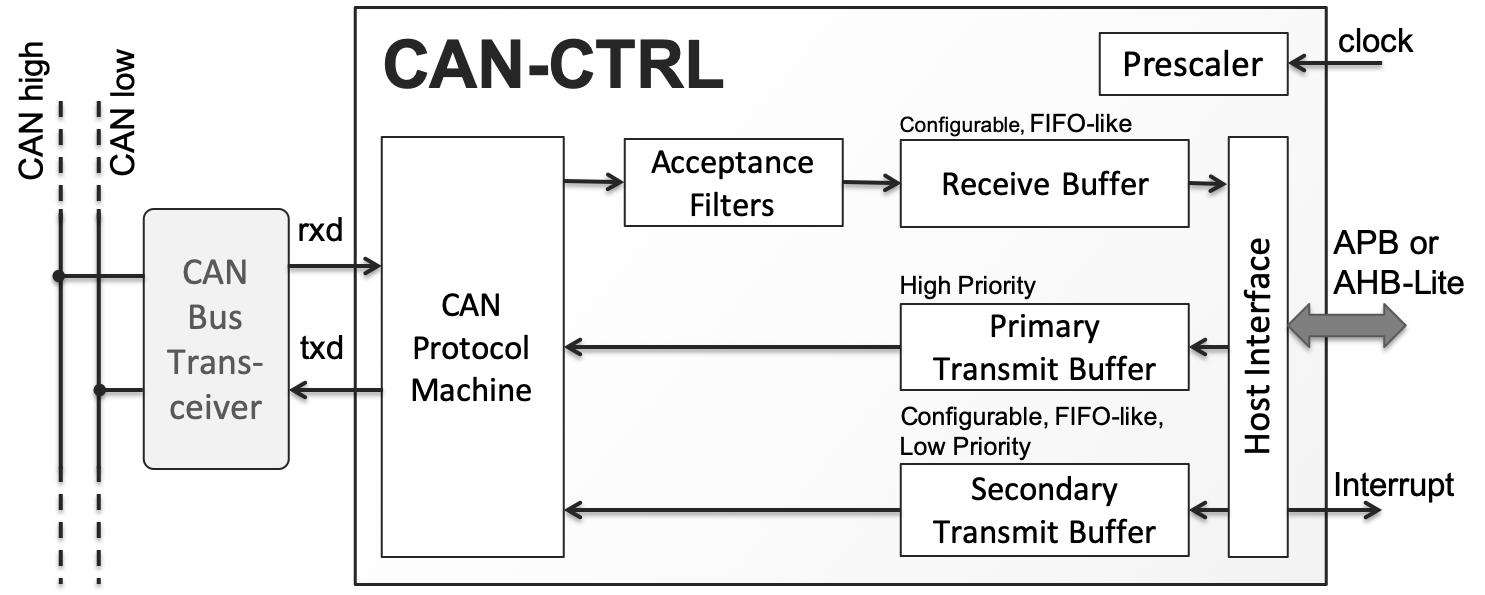

  • CAN-CTRL - CAN 2.0, CAN FD, and CAN XL Bus Controller

    IP Core

    CAN-CTRL - CAN 2.0, CAN FD, and CAN XL Bus Controller

    Highly featured and multiple times production proven IP core. Available in standard and safety-enhanced (ISO 26262) versions. Portable to any Lattice FPGA
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    CAN, Automotive, Functional Safety
    CAN-CTRL - CAN 2.0, CAN FD, and CAN XL Bus Controller
  • CANmodule-III

    IP Core

    CANmodule-III

    Compliant to the international CAN standard defined in ISO 11898-1, interfaces to an AMBA 2 Advanced Peripheral Bus (APB)
    iCE40 LP/HX
    AMBA, Bus Controllers, CAN
    CANmodule-III
  • CANmodule-IIx

    IP Core

    CANmodule-IIx

    Fully functional CAN controller module that contains advanced message filtering, and receive and transmit buffers.
    iCE40 LP/HX
    AMBA, Bus Controllers, CAN
    CANmodule-IIx
  • iniCAN

    IP Core

    iniCAN

    Implements the low-level CAN protocol handling - complete data link layer, framer, transmit and receive control, error handling, error reporting and bit sync.
    iCE40 LP/HX
    Bus Controllers, CAN
    iniCAN
  • LatticeECP3 HV3 Module from Tachyssema

    Board

    LatticeECP3 HV3 Module from Tachyssema

    A compact solution for high definition video processing, real-time image analysis, high speed multi-stream processing...
    LatticeECP3
    CAN, CompactFlash, DDR SDRAM, DVI, Ethernet, SERDES
    LatticeECP3 HV3 Module from Tachyssema

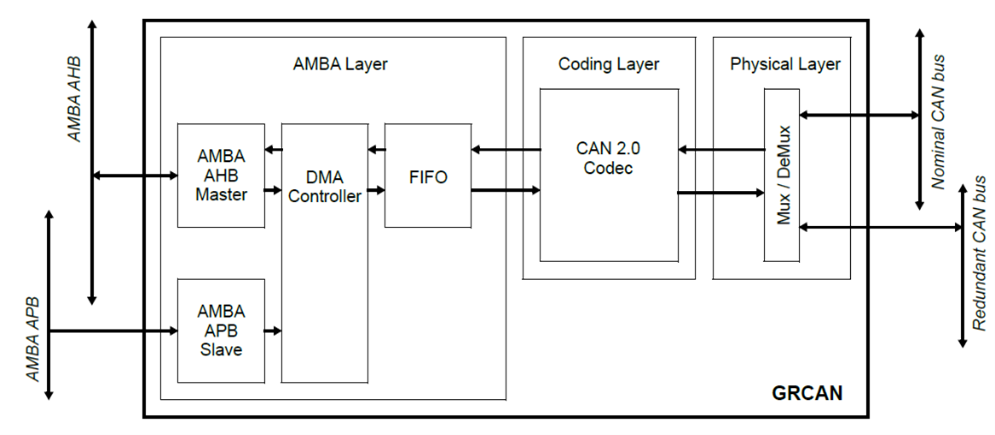

  • GRCAN - CAN 2.0B Controller IP Core

    IP Core

    GRCAN - CAN 2.0B Controller IP Core

    The GRCAN core is a CAN controller with an AHB DMA backend. The APB bus is used for configuration, control and status handling and the AHB bus is used for retrieving and storing CAN messages in memory external to the CAN controller.
    CertusPro-NX, Certus-NX
    CAN, AHB, DMA
    GRCAN - CAN 2.0B Controller IP Core
  • ​​Robo/TSN for Industrial Networks with Multi-Gig Ethernet​

    Reference Design

    ​​Robo/TSN for Industrial Networks with Multi-Gig Ethernet​

    MLE Robo/TSN virtualizes multi-Gigabit TSN and protocols, linking factory floor to cloud with SmartNICs scalable to 100 Gbps and beyond.​
    Avant-G, Avant-X
    SFP, CAN, IEEE1588, Ethernet, IEEE 802.3, CSI-2, PCIe, Image Processing, MIPI, Encryption, Avionics
    ​​Robo/TSN for Industrial Networks with Multi-Gig Ethernet​
