  • 5G O-RU L-PHY & H-PHY IP Cores

    IP Core

    5G O-RU L-PHY & H-PHY IP Cores

    ​​Yongatek's L-PHY IP in Lattice CertusPro-NX FPGA: 3GPP TS38.212 Release 16 compatible, O-RAN Alliance compliant, up to 6GHz, ideal for mid-power RF apps.​
    CertusPro-NX
    CFR, CPRI, CRC, Data Communication, Data Compression, DSP, DUC, IEEE1588, AXI, SPI
    5G O-RU L-PHY & H-PHY IP Cores
  • FlinQ – Flawless Link Quality Encoder / Decoder IP-cores

    IP Core

    FlinQ – Flawless Link Quality Encoder / Decoder IP-cores

    FlinQ™ enables higher quality and a significant gain of efficiency for high performance and reliable visual communication over both wired and wireless links.
    CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G
    Data Compression, Camera, Image Processing, Video Tx/Rx, Video Compression
    FlinQ – Flawless Link Quality Encoder / Decoder IP-cores
  • TICO-RAW Encoder/Decoder IP-cores

    IP Core

    TICO-RAW Encoder/Decoder IP-cores

    TICO-RAW is a revolutionary RAW compression, extremely tiny & low power, with low latency and lossless quality to handle camera and sensor data (Bayer).
    CrossLink-NX, Certus-NX, CertusPro-NX, LatticeECP2/M, ECP5 / ECP5-5G
    Data CODEC, Data Compression, Camera, Debayer, Image Processing, JPEG CODEC, SMPTE/Broadcast Video, Video Tx/Rx, Video Compression, RAW Codec
    TICO-RAW Encoder/Decoder IP-cores

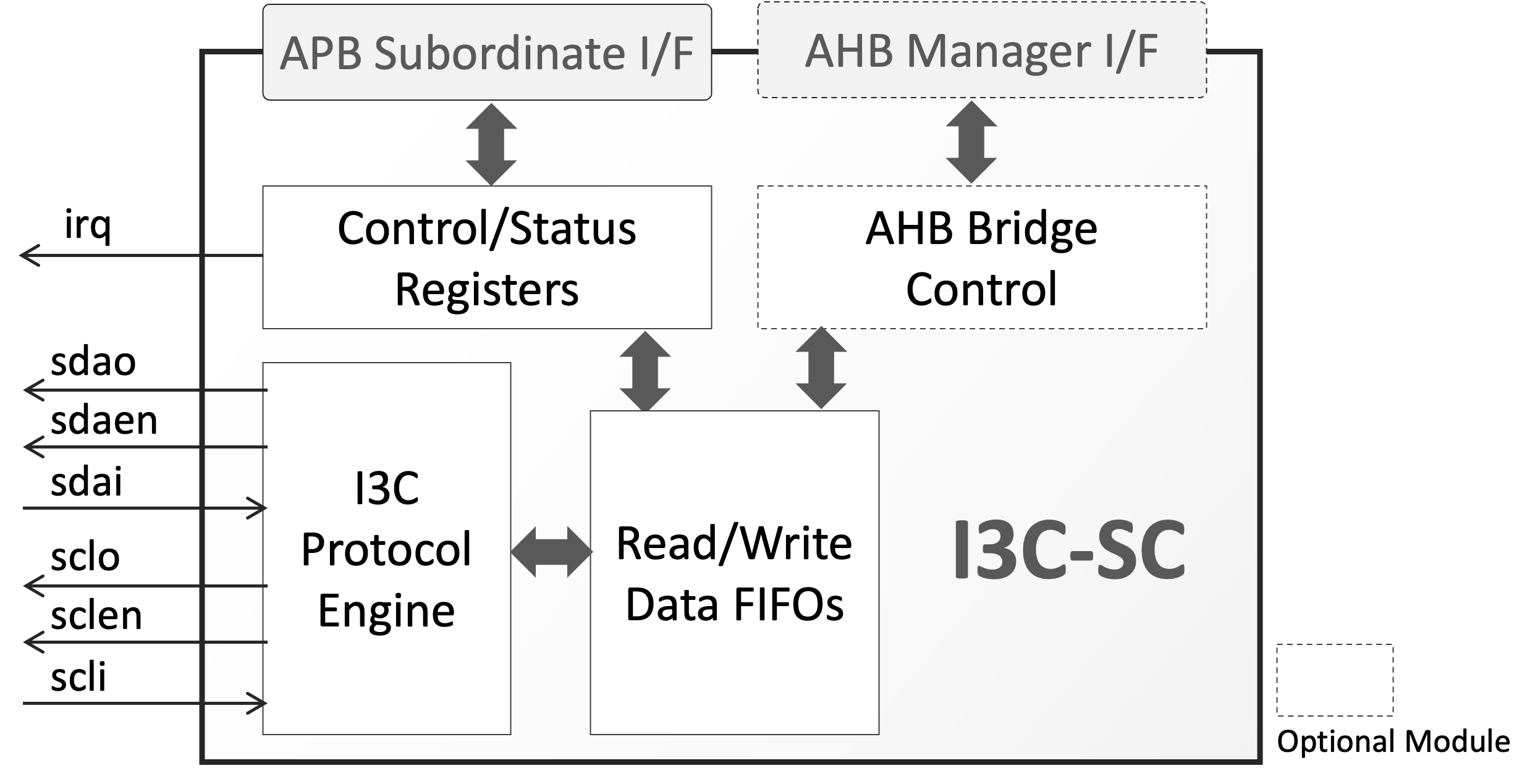

  • ​​I3C-SC: MIPI I3C Basic Secondary Controller​

    IP Core

    ​​I3C-SC: MIPI I3C Basic Secondary Controller​

    ​​Highly featured I3C Basic Secondary Controller (Controller-Capable Slave). Optional I3C-to-AHB bridge functionality from over-I3C remote access of local AHB bus. Works to any Lattice FPGA device.​
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CertusPro-NX, CrossLink-NX, Avant-E, Avant-G, Avant-X
    Data Compression, I3C
    ​​I3C-SC: MIPI I3C Basic Secondary Controller​

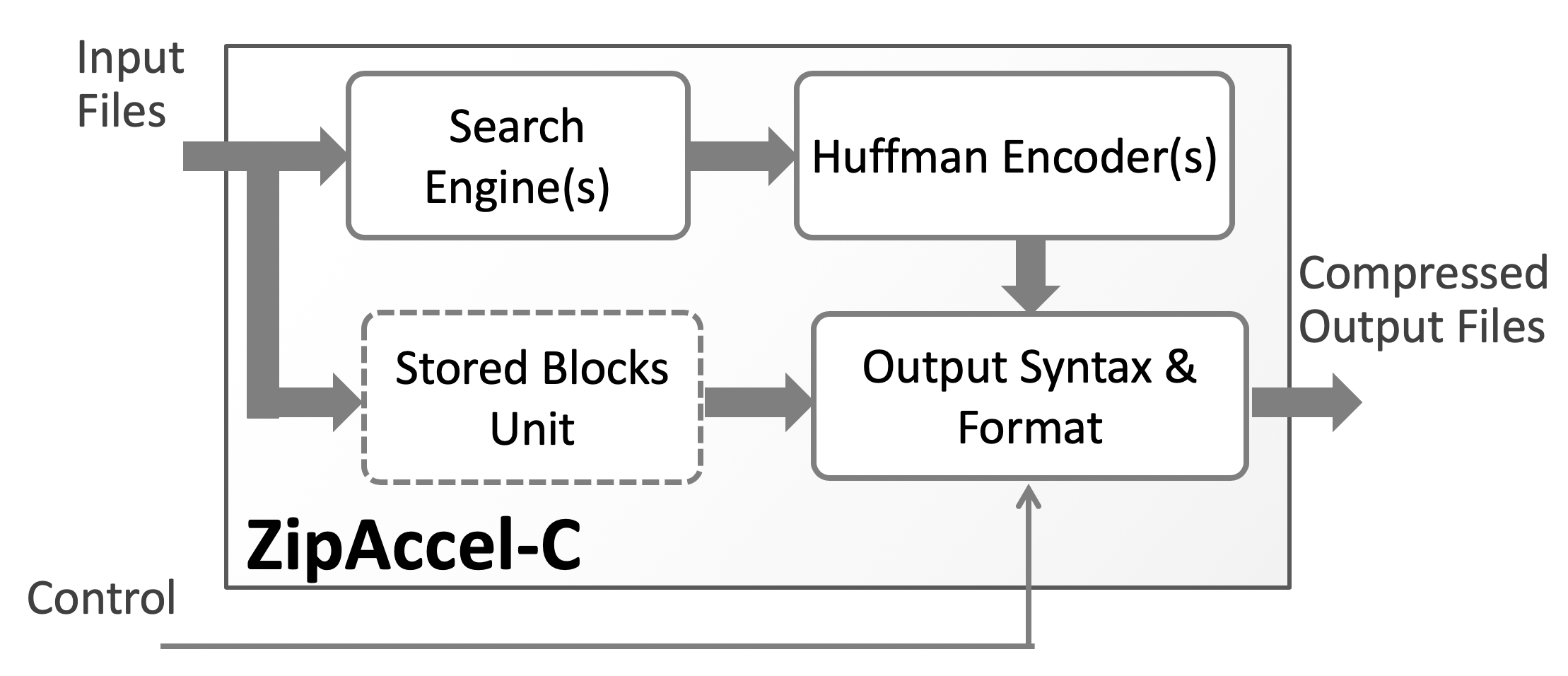

  • ZipAccel-C: GZIP/ZLIB/Deflate Data Compression

    IP Core

    ZipAccel-C: GZIP/ZLIB/Deflate Data Compression

    ZipAccel-C: GZIP/ZLIB/Deflate Compression Core is a custom hardware implementation of a lossless data compression engine that complies with the Deflate, GZIP, and ZLIB compression standards.
    ECP5 / ECP5-5G, CrossLink-NX, CertusPro-NX, Avant-E, Avant-G, Avant-X
    Data Compression, AXI
    ZipAccel-C: GZIP/ZLIB/Deflate Data Compression

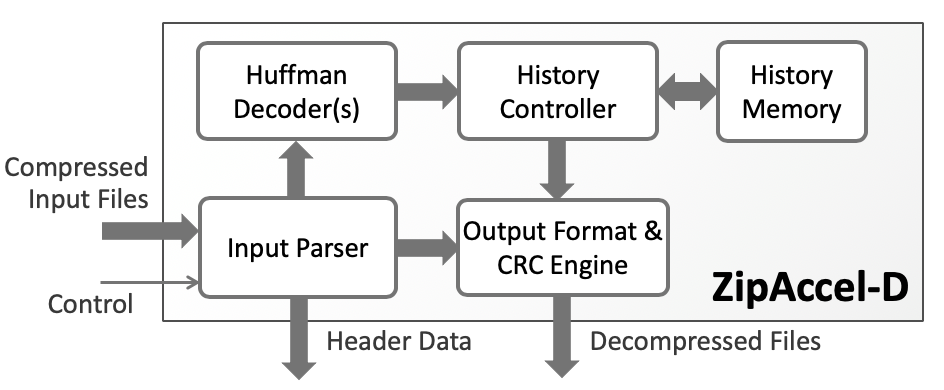

  • ZipAccel-D: GUNZIP/ZLIB/Inflate Data Decompression

    IP Core

    ZipAccel-D: GUNZIP/ZLIB/Inflate Data Decompression

    ZipAccel-D: Decompression engine for GZIP/ZLIB/Deflate files is a custom hardware implementation of a lossless data decompression engine that complies with the Inflate/Deflate, GZIP/GUNZIP, and ZLIB compression standards.
    ECP5 / ECP5-5G, CrossLink-NX, CertusPro-NX, Avant-E, Avant-G, Avant-X
    Data Compression, AXI
    ZipAccel-D: GUNZIP/ZLIB/Inflate Data Decompression

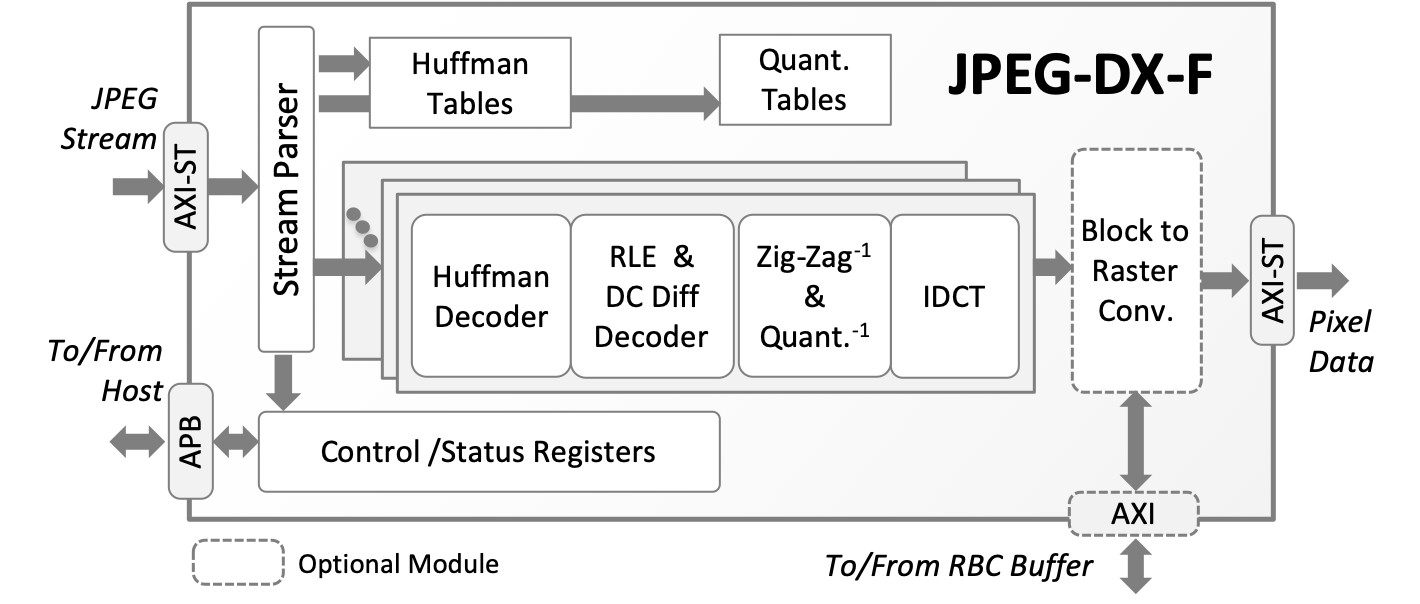

  • JPEG-DX-F - Ultra-Fast Baseline and Extended JPEG Decoder

    IP Core

    JPEG-DX-F - Ultra-Fast Baseline and Extended JPEG Decoder

    Scalable, ultra-high throughput 8/12-bit JPEG decoder. Ideal for low-latency motion-Jpeg streaming. Full-HD or Ultra-HD capable depending on the device.
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    Data Compression, JPEG, JPEG CODEC
    JPEG-DX-F - Ultra-Fast Baseline and Extended JPEG Decoder

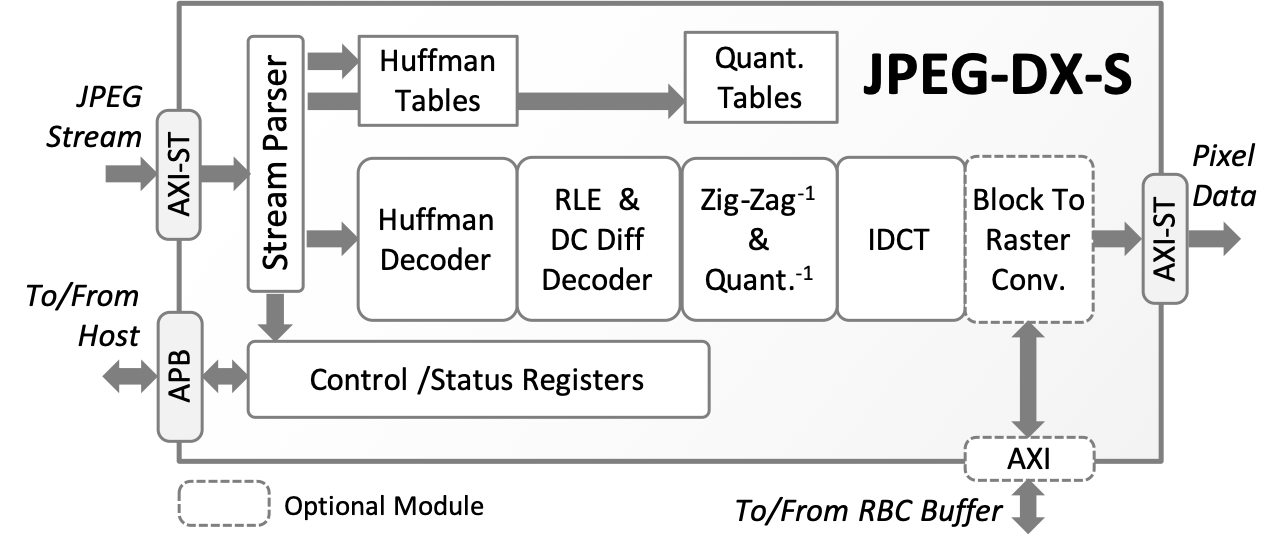

  • JPEG-DX-S - Baseline and Extended JPEG Decoder

    IP Core

    JPEG-DX-S - Baseline and Extended JPEG Decoder

    Compact, 8bit and 12bit per color, JPEG decoder. Ideal for low-latency motion-Jpeg streaming.
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    Data Compression, JPEG, JPEG CODEC
    JPEG-DX-S - Baseline and Extended JPEG Decoder

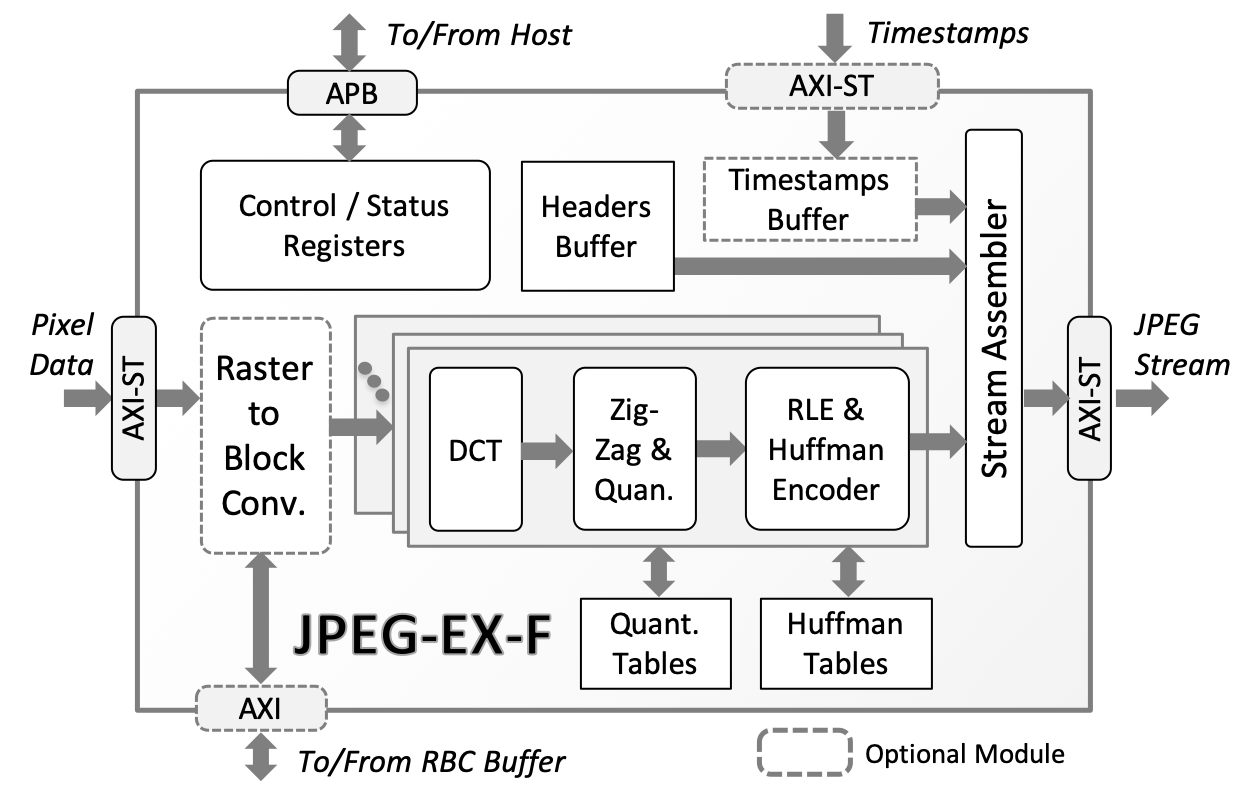

  • JPEG-EX-F - Ultra-Fast Baseline and Extended JPEG Encoder

    IP Core

    JPEG-EX-F - Ultra-Fast Baseline and Extended JPEG Encoder

    Scalable, ultra-high throughput 8/12-bit encoder. Highly configurable with advanced bit-rate control. Ideal for low-latency motion-Jpeg streaming.
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    Data Compression, JPEG, JPEG CODEC
    JPEG-EX-F - Ultra-Fast Baseline and Extended JPEG Encoder

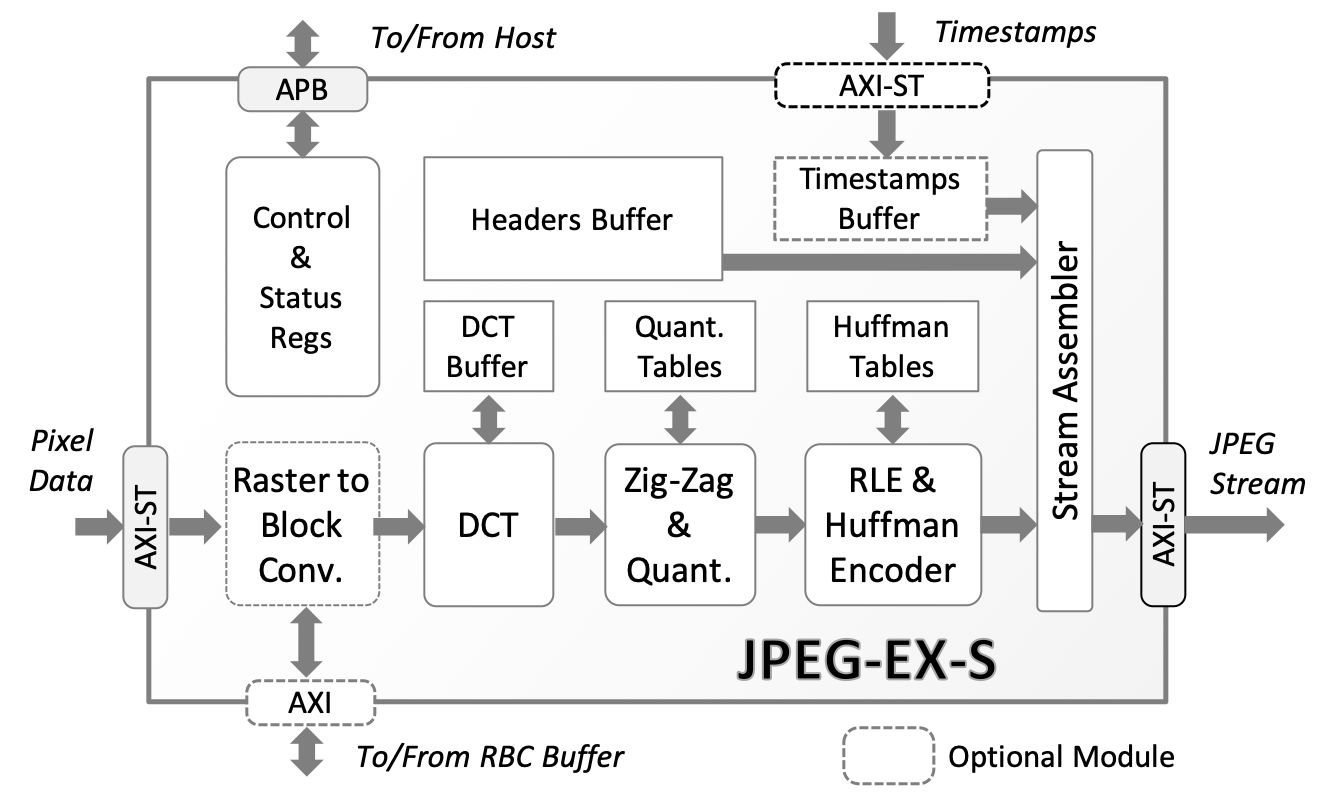

  • JPEG-EX-S - Baseline and Extended JPEG Encoder

    IP Core

    JPEG-EX-S - Baseline and Extended JPEG Encoder

    Compact, 8bit and 12bit per color, JPEG encoder. Highly configurable with advanced bit-rate control features. Ideal for low-latency motion-Jpeg streaming.
    MachXO2, MachXO3, iCE40 Ultra / UltraLite, iCE40 UltraPlus, LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    Data Compression, JPEG, JPEG CODEC
    JPEG-EX-S - Baseline and Extended JPEG Encoder

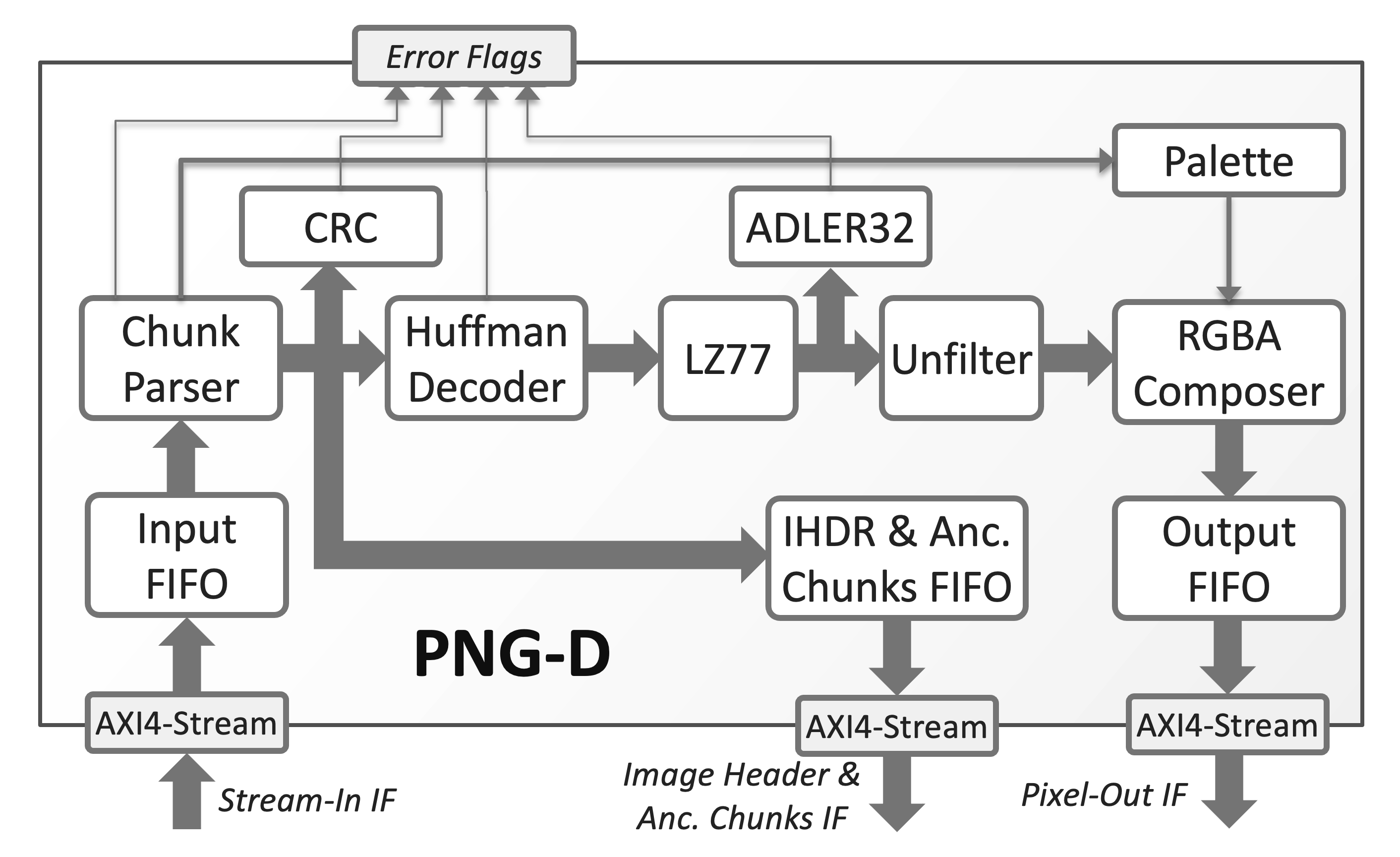

  • PNG Lossless Compression Decoder

    IP Core

    PNG Lossless Compression Decoder

    Compact and fast PNG compression decoder with streaming input and output interfaces.
    LatticeECP3, ECP5 / ECP5-5G, Certus-NX, CrossLink-NX
    Data Compression, Image Processing
    PNG Lossless Compression Decoder
  • Tri-Rate Serial Digital Interface Physical Layer

    IP Core

    Tri-Rate Serial Digital Interface Physical Layer

    A complete SDI PHY SERDES-based interface bridging high-speed SDI serial data to formatted parallel video data. Compliant to numerous SMPTE standards.
    LatticeECP3
    Data Compression, Parallel Video, SDI Video, SMPTE/Broadcast Video, Video Bridge, Video Tx/Rx
    Tri-Rate Serial Digital Interface Physical Layer

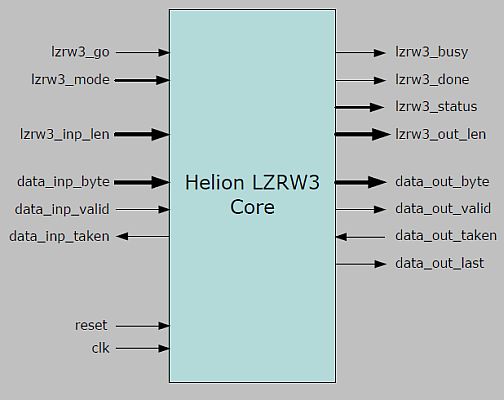

  • LZRW3 Data Compression Core

    IP Core

    LZRW3 Data Compression Core

    Implements the LZRW3 data compression algorithm in FPGA without the need for external memory storage. Capable of over 1 Gigabit/sec.
    LatticeECP3
    Data CODEC, Data Communication, Data Compression
    LZRW3 Data Compression Core
  • Payload Compression System

    IP Core

    Payload Compression System

    Uses a very robust and mature implementation of the LZRW lossless compression algorithm
    LatticeECP3
    Data Compression
    Payload Compression System
  • LT-125 Video Codec Evaluation Platform

    Board

    LT-125 Video Codec Evaluation Platform

    A LatticeECP3 based HD video compression and decompression evaluation platform
    LatticeECP3
    Data Compression, DVI, H.264 (MPEG), HDMI, SDI Video, SMPTE/Broadcast Video, Video Tx/Rx, Automotive
    LT-125 Video Codec Evaluation Platform

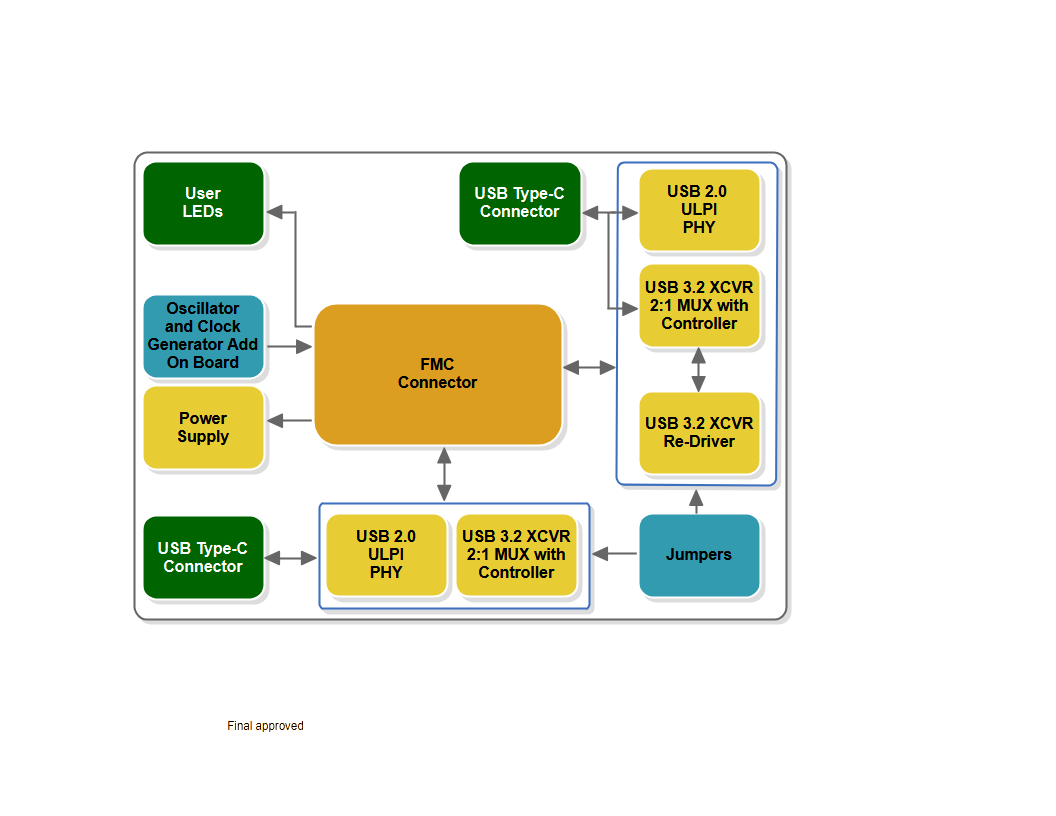

  • ​​USB 3.2 FMC Board​

    Board

    ​​USB 3.2 FMC Board​

    ​​USB 3.2 FMC Board is to validate USB 3.2 functionality with FPGA’s inbuilt serial transceivers. It has ULPI PHY chip to validate USB 2.0 functionality.​
    CrossLink-NX, CertusPro-NX
    FMC, Data Compression, DSP, USB Type-C, USB3, Camera, Image Processing
    ​​USB 3.2 FMC Board​
