Lattice Solutions

IP Core

​​JESD204B IP Core​

​​The Lattice JESD204B IP Core is a high-speed serial interface used between data converters, and the FPGA device to replace traditional interfaces.​

ECP5 / ECP5-5G, LatticeECP3, CertusPro-NX, Avant-G, Avant-X

ADC/DAC, DSP, SDR

Board

Secure Connected Motion Control Platform

​​This platform offers resilient connectivity, low power consumption, high performance, and robust security is increasing across various industries.​

CertusPro-NX, MachXO3D

LPDDR4, PCIe, RoT, PMOD, FMC, FTDI, ADC/DAC, Motor Control, Industrial Ethernet, 10BASE-T1L, EtherCAT, PROFINET

Board

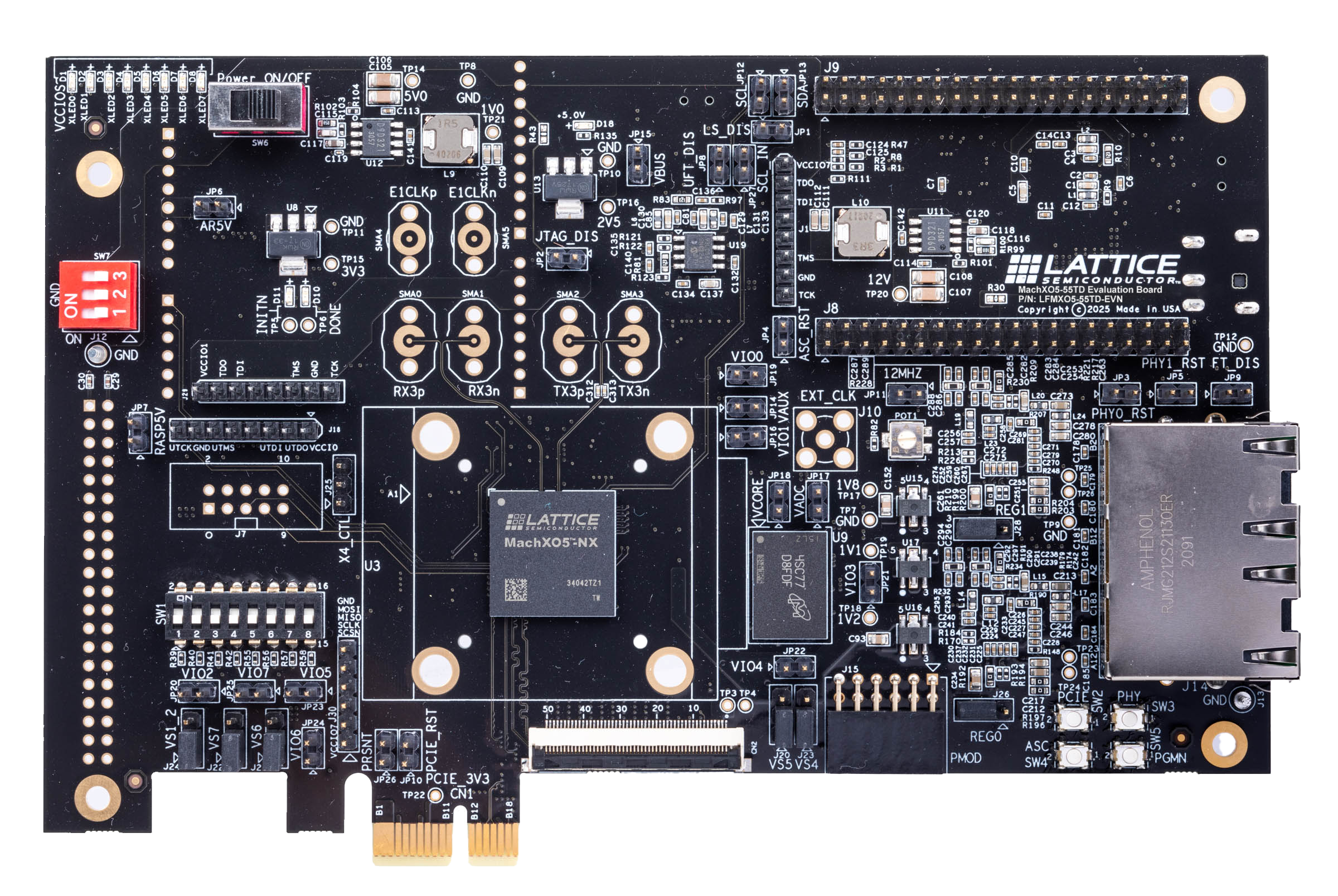

MachXO5-55TD Evaluation Board

MachXO5-55TD Development Board also includes features to expand the usability of the LFMXO5-55TD/Q with Arduino, Raspberry, FX12, Versa, and Aardvark headers.

MachXO5-NX

ADC/DAC, I2C, RJ-45, SPI, PMOD, LED Control, LVDS Video

Board

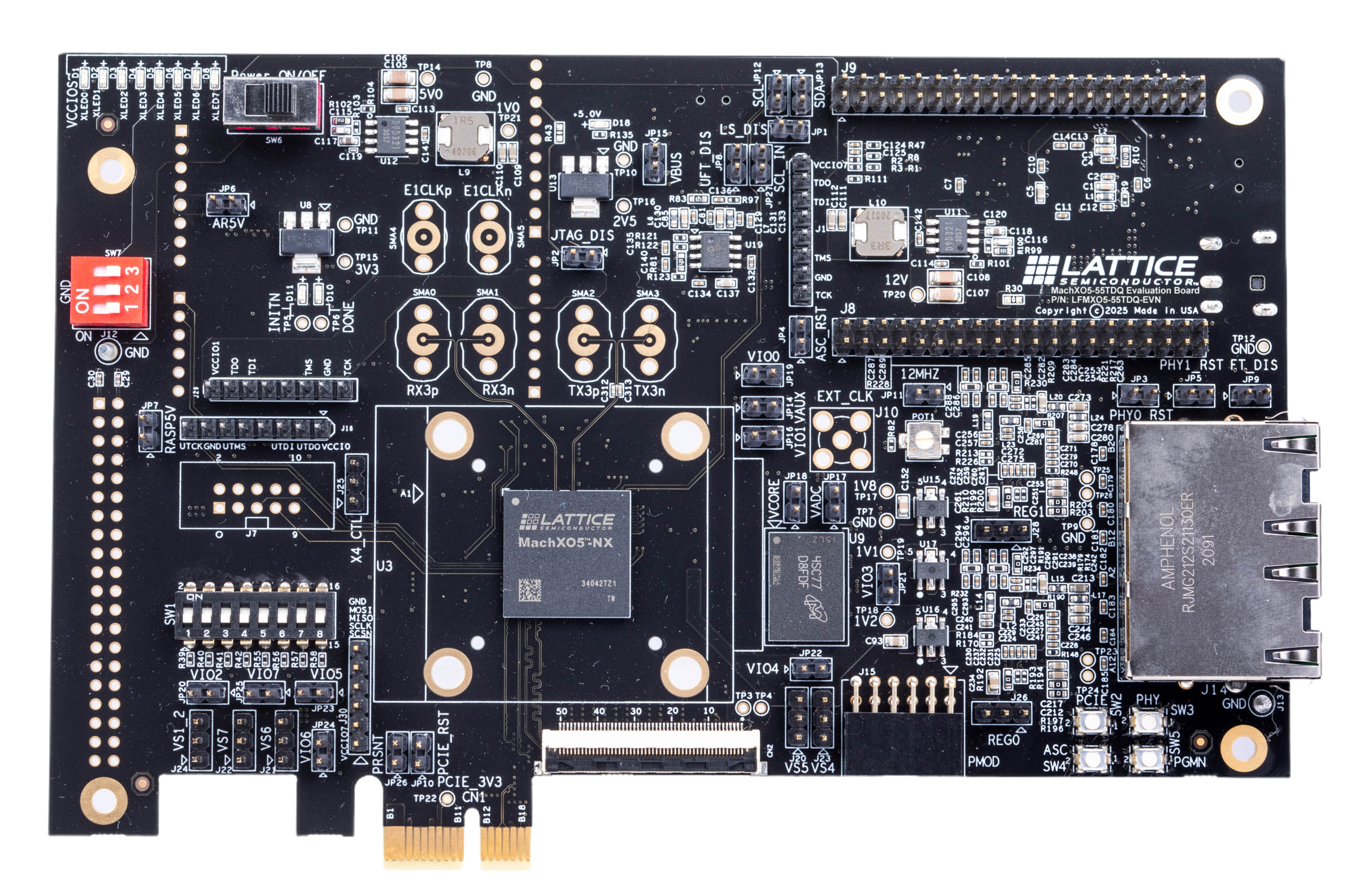

MachXO5-55TDQ Evaluation Board

MachXO5-55TDQ Development Board also includes features to expand the usability of the LFMXO5-55TDQ with Arduino, Raspberry, FX12, Versa, and Aardvark headers.

MachXO5-NX

ADC/DAC, I2C, RJ-45, SPI, PMOD, LED Control, LVDS Video, Quantum Encryption

Board

MachXO5-NX-15D Development Board

The MachXO5-NX-15D Development Board offers variety of features to expand the usability of the LFMXO5-15D with Arduino, Raspberry, FX12, Versa, and Aardvark headers.

MachXO5-NX

ADC/DAC, Hirose FX12, I2C, RJ-45, SPI, PMOD, LED Control, LVDS Video

Board

MachXO5T-NX Development Board

The MachXO5T-NX Development Board offers a variety of features and programmability that enhances Secure Control PLD functionality with Multiple Boot.

MachXO5-NX

ADC/DAC, I2C, RJ-45, SPI, PMOD, LED Control, LVDS Video

Board

MachXO5™-NX Development Board

Allows designers to work with features of MachXO5-25 and L-ASC10 hardware management expander to assist in rapid prototyping and testing of specific designs

MachXO5-NX

ADC/DAC, Hirose FX12, I2C, RJ-45, SPI, PMOD, LED Control, LVDS Video

Reference Design

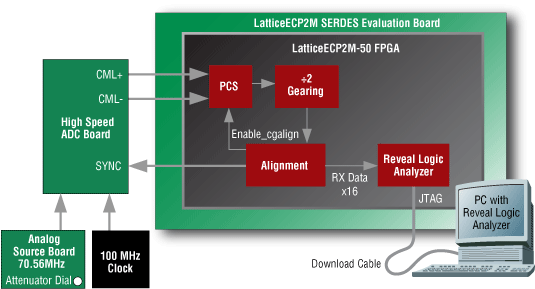

JESD204 ADC Reference Design

Provides designers an ideal platform for a low cost, low power and small footprint solution for FPGA based serial data acquisition and processing

LatticeECP2/M

ADC/DAC, DSP, SDR

Board

CrossLink-NX PCIe Bridge Board

Connectivity Development Platform Enabling Bridging of Multi-Standard I/O Interfaces to PCIe

CrossLink-NX

PCIe, DDR SDRAM, Camera, Ethernet, UART, SPI Flash, ADC/DAC, MIPI, GPIO Control, I2C

Board

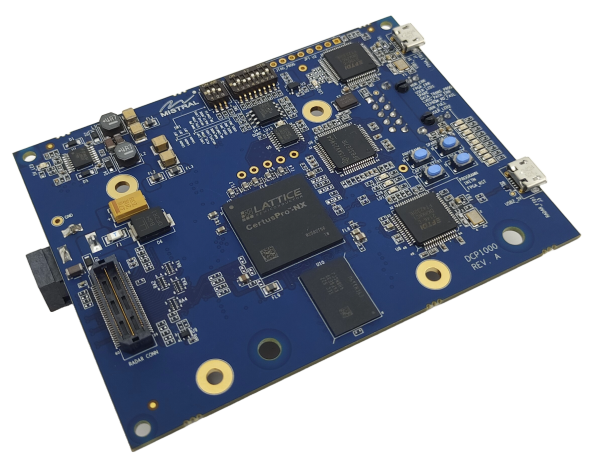

DCP1000 - Data Capture and Playback Module

DCP1000 is a compact, user-friendly Data Capture & Playback Card for mmWave radars, built on Lattice Nexus, featuring CertusPro-NX with 100K logic cells & DDR4.

CertusPro-NX

Ethernet, ADC/DAC, DDR 2/3/4+, SPI Flash, LVDS Video, I2C, SPI, UART

Board

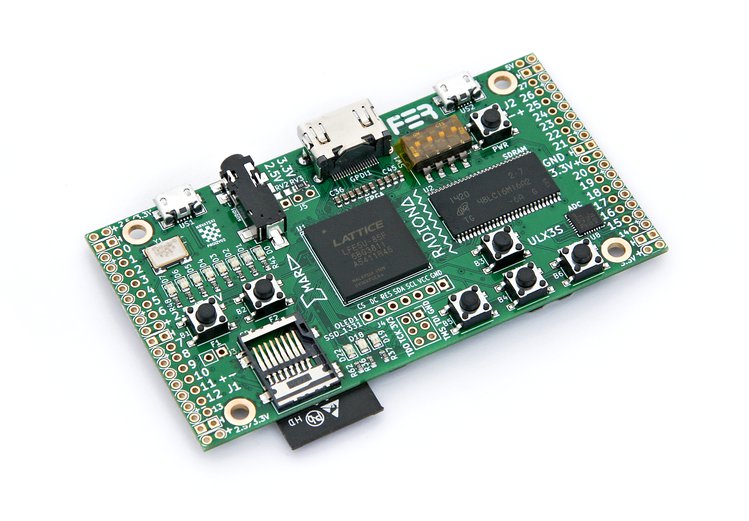

ULX3S by Radiona.org

A fully open source, compact, robust, and affordable ECP5 FPGA dev board equipped with a balanced selection of additional components and expansions.

ECP5 / ECP5-5G

Community Sourced, Battery, Bluetooth-BLE, WiFi, ADC/DAC, SD Memory, SDRAM

Reference Design

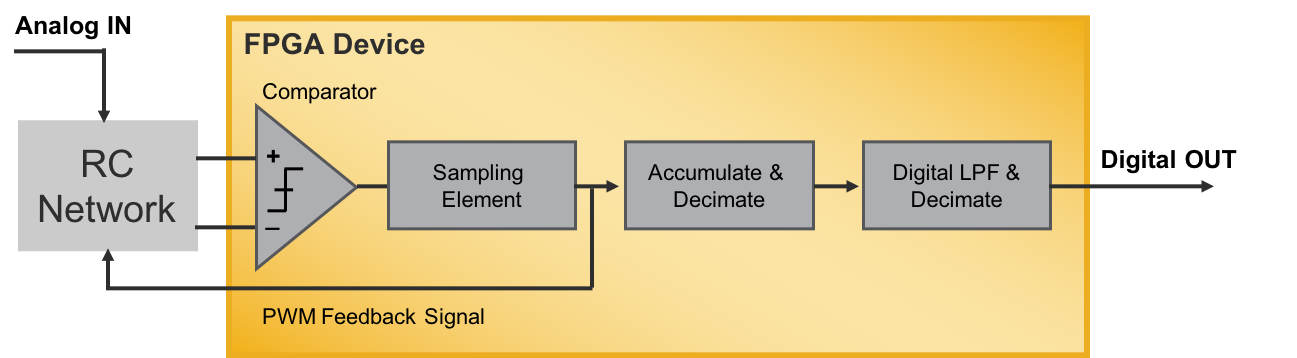

Simple Sigma-Delta ADC

Implements an Analog-to-Digital (ADC) using on-FPGA differntial LVDS inputs (or inexpensive analog comparitor). Save cost by eliminating external ADC devices.

MachXO, MachXO2, LatticeXP2, iCE40 UltraPlus

ADC/DAC, Home Control Appliances & Security, IoT & Wearables, Notebooks & PCs, Printers, Smart Toys & Robots, Tablets, Guidance Systems, Smart munitions

Reference Design

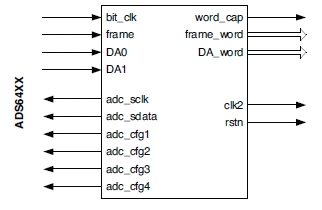

ADC Interface

Interfaces with the Texas Instruments (TI) ADS64XX family of ADCs via LatticeECP3 FPGA high-speed LVDS I/O

LatticeECP3, LatticeECP2/M

ADC/DAC, Guidance Systems, Space, Satellite Communications, Launchers, Smart munitions

IP Core

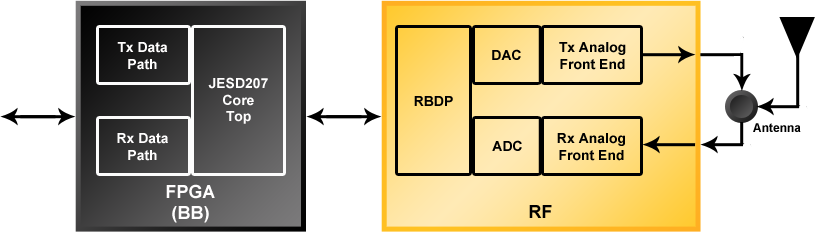

JESD207 IP

Implements baseband (BB) side data and control plane paths to connect to a radio front-end (RF) transceiver device with integrated ADC and DAC.

LatticeECP3

ADC/DAC, CFR, CPRI, Data Communication, DSP, DUC

IP Core

JESD204A IP Core

Supports ADC/DAC to FPGA in both an Rx and/or a Tx core. The Rx and Tx cores can each be generated separately and with different parameters.

LatticeECP3

ADC/DAC, DSP, SDR

Reference Design

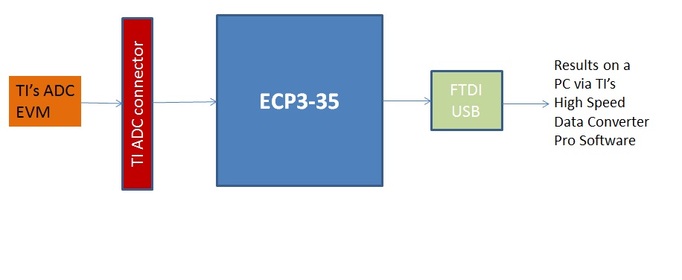

TI TSW1405 & TSW1406 HDL Reference Design

Interface the LatticeECP3 FPGA to TI TSW1405 and TSW1406 ADCs.

LatticeECP3

ADC/DAC, DSP

Reference Design

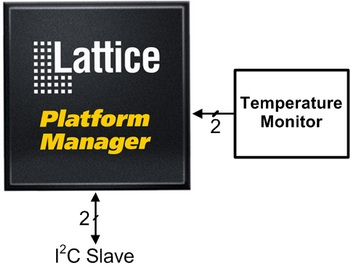

ADC Temperature Measurement Readout

Demonstrates the input of ambient temperature using an input voltage developed using an external resistor/thermistor and interface to the on-chip ADC using I2C

Platform Manager

ADC/DAC, I2C, Mixed-Signal, Temperature Sensor, Guidance Systems, Smart munitions

Board

LatticeECP3 IOP to TI ADC/DAC Adapter Board

No longer available - for reference only. For use with the ECP3 IO Protocol Board in ADC-DAC applications + Connects IO protocol board with a TI ADS6425.

LatticeECP3

ADC/DAC, SPI-4

Board

LatticeECP2 Advanced - TI ADS6000 EVM Interface Card

No longer available - for reference only. Connects theLatticeECP2 Advanced Evaluation board to an evaluation module for the TI ADS6000 family + Molex/SPI4.2.

LatticeECP2/M

ADC/DAC

Board

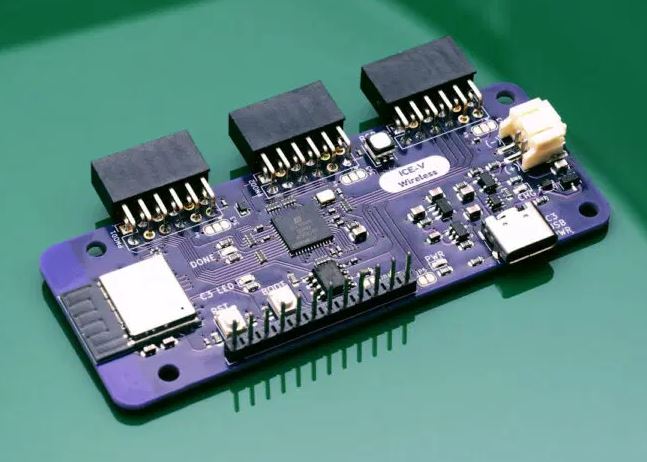

ICE-V-Wireless-FPGA-Board

The ICE-V Wireless FPGA board utilizes iCE40 UltraPlus with wireless support through an ESP32-C3-MINI-1 module with WiFi 4 and Bluetooth LE connectivity.

iCE40 UltraPlus

PMOD, ADC/DAC, Bluetooth-BLE, GPIO Control, I2C, SPI, USB Type-C, WiFi, PSRAM, LiPo, ESP32 firmware
