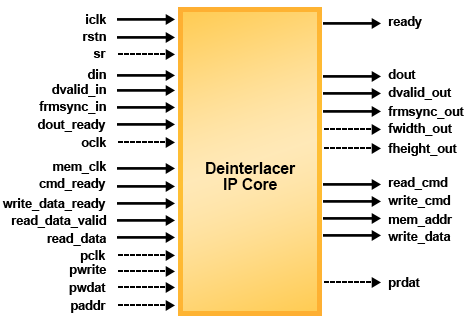

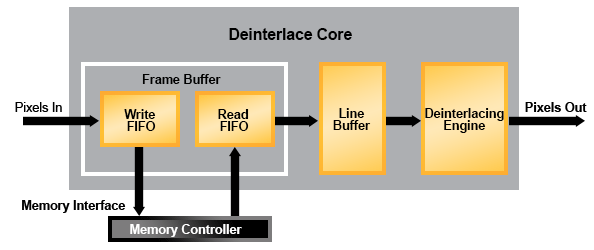

The Lattice™ Semiconductor Deinterlacer IP core converts interlaced video into progressive video format using bob, intra motion and inter motion adaptive deinterlacing algorithms to reduce interline flickers and jagged edges. The Deinterlacer IP core supports image sizes up to 4k × 4k with YCbCr 4:2:2, 4:4:4 and RGB video formats. The Deinterlacer IP core supports dynamic parameter updating through a parameter bus, which can be configured to operate on a different clock from the core. Simple frame rate conversion is employed to support different input and output frame rates.
Latest Resource Utilization details are available in the IP Core User Guide.
