CSI2-to-Parallel Bridge Board

The Sony IMX169 image sensor is used on the CSI2-to-Parallel Bridge Board. It is intended for use with the HDR-60 Video Camera Development Kit and/or the MachXO2 Dual Sensor Interface Board. The Sony IMX169 is a MIPI CSI2 based image sensor. It is a 13M pixel device that can be configured for 1080p or 720p resolutions.

To use the CSI2-to-Parallel Bridge Board in a demonstration, the appropriate bitstreams are required for the MachXO2 Dual Sensor Interface Board and for the LatticeECP3 FPGA on the HDR-60 Base Board. These bitstream files are available for download from this site.

Features

  • Requires HDR-60 Video Camera Base Board and MachXO2 Dual Sensor Interface Board to demonstrate CSI2-to-Parallel Bridge Board
  • Features Sony IMX169 image sensor
  • 1080p at 30fps operation for demonstration

Jump to

Kit Contents

  • One CSI2-to-Parallel Bridge Board

Board Photos

Top View

Click image to enlarge

Bottom View

Click image to enlarge

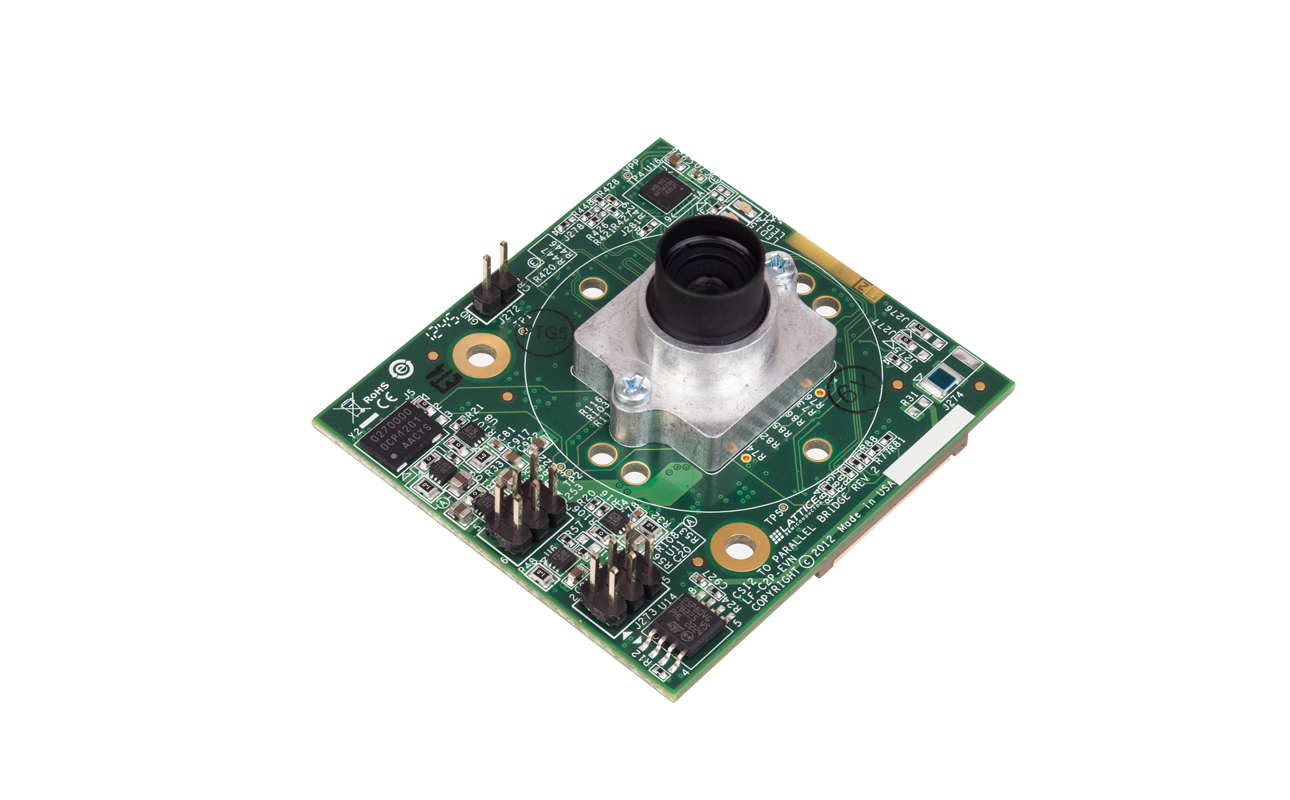

Side View

Click image to enlarge

Ordering Information

  • Reference Number: LF-C2P-EVN
  • This board is no longer available for purchase.
  • Information provided on this page is for reference purposes only.
  • Contact your local Lattice sales representative for further information.
