Printers

Enabling Fast, High Quality, And Smart Printing

Related Products

Next generation printers are packing multi-function capabilities into every form factor from consumer class printer to office type multi-function printers. Users expect high quality scanning and printing, easy customization of settings, and longer ink life. Designer are using FPGAs to drive print head motors, precisely saving ink, customizing the user experience by detecting and identifying users as they approach the machine and helping OEMs drive custom experiences to differentiate over strong competitive products.

Lattice’s solutions running on optimized low power FPGAs provide:

  • Low power on-device AI for user detection, identification and human-machine interfacing
  • ISP pipeline for capturing quality images
  • Accurate, low power and predictable motor control to drive devices’ movement
  • Customizable high speed connectivity between the various boards in the system

Jump to

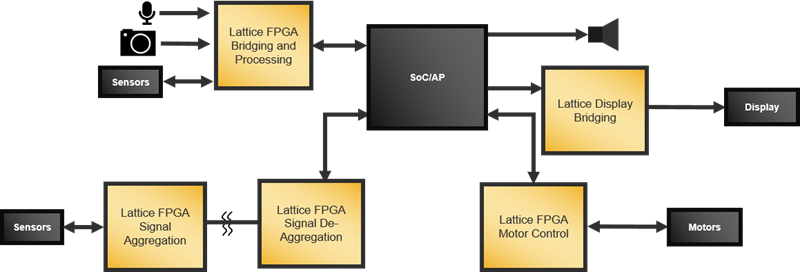

Block Diagram

Printers

Example Use Cases

Low Power AI Processing

  • Low Power on-device NN based processing
  • Reduced data traffic to the cloud, improving security and privacy and reducing bandwidth usage
  • Object detection, classification, counting and HMI including gestures and voice based commands

Motor Control

  • Low Latency programmable motor control
  • Ability to interface with a wide variety of motors
  • Predictable performance to meet safty requirements

Low Latency Sensor Bridging

  • Take advantage of parallel FPGA architecture to simultaneously collect data from multiple sensors
  • Interface to a wide variety of sensors to create rich user experience
  • Flexible preprocessing including arbitration, time stamping, and filtering

Reference Designs

Human Face Identification

Reference Design

Human Face Identification

Uses a Convolutional Neural Network in the ECP5 FPGA to detect a human face, and match to known registered faces. Can be adapted to work with any other object.
Human Face Identification
人感検出

Reference Design

人感検出

Uses Lattice sensAI IP to continuously search for the presence of a human and reports results. Can be adapted to detect any other object.
人感検出

Demos

Human Face Identification

Demo

Human Face Identification

Register and identify faces without retraining, eliminating the need for uploading images and lengthy retraining using a GPU.
Human Face Identification
人感検出

Demo

人感検出

Uses an artificial intelligence (AI) algorithm to detect human presence with either the powerful ECP5 FPGA, or small, low-power iCE40 UltraPlus FPGA.
人感検出
人数カウント

Demo

人数カウント

人数カウントのデモはラティスのECP5 FPGAと畳み込みニューラルネットワーク(CNN)アクセラレーションエンジンを活用
人数カウント

IP Cores

CNN Plus Accelerator IP

IP Core

CNN Plus Accelerator IP

Implement Ultra-Low Power AI solutions with CNNs. Configure up to 16-bit widths. Works with Lattice Neural Network Compiler software tool.
CNN Plus Accelerator IP
CSI-2 / DSI D-PHY レシーバ

IP Core

CSI-2 / DSI D-PHY レシーバ

MIPI D-PHY はカメラやディスプレイの標準的なインタフェースです。この IP を使用すると FPGA に D-PHY レシーバを実装できます。
CSI-2 / DSI D-PHY レシーバ

Development Kits & Boards

CrossLink-NX 評価ボード

Board

CrossLink-NX 評価ボード

CrossLink-NX 評価ボードは 40K ロジックセルのCrossLink-NXを搭載: ほとんどの I/O に簡単にアクセス可能、FPGA の PCIe 5G SERDES: FPGA メザニンカード (FMC)、Raspberry Pi、MIPI CSI-2、D-PHY、拡張用汎用ヘッダ
CrossLink-NX 評価ボード
CrossLink: LIF-MD6000 – マスターリンクボード

Board

CrossLink: LIF-MD6000 – マスターリンクボード

ドーターボード用のコネクタを備えたマスターCrossLinkプラットホーム。I/Oリンクボードを含む。
CrossLink: LIF-MD6000 – マスターリンクボード
CrossLink: LIF-MD6000 I/O リンクボード

Board

CrossLink: LIF-MD6000 I/O リンクボード

カスタム開発およびに評価用のCrossLink I/Oにアクセスするため、LIF-MD6000マスターリンクボードに接続
CrossLink: LIF-MD6000 I/O リンクボード
