Embedded Vision Development Kit

Modular Platform for Embedded Vision Processing at the Edge

Related Products

Related Applications

Modular Video Interface Platform (VIP) for embedded vision – Ultimate software and hardware prototyping environment for embedded system designers.

Flexible interface connectivity - Ability to mix and match input and output boards to interface with a variety of image sensors and displays.

Energy efficient image pre-processing and acceleration – Perfectly suited for Industry 4.0 machine vision, surround view cameras in smart automotive application, drones, smart city, retail applications, medical applications and augmented reality.

Features and Optional Modules

  • All-inclusive development kit with on-board video sources
  • CrossLink VIP Input Bridge Board with two Sony IMX 214 high-speed MIPI D-PHY interface camera sensors
  • CrossLink-NX VIP Input Bridge Board with 4 Sony IMX258 high-speed MIPI D-Phy interface camera sensors
  • On Semiconductor AR0234CS Image Sensor Board
  • Sony IMX464 Image Sensor Board
  • Sony IMX568 Image Sensor Board
  • Standard image sensor connector for easy sensor exchange
  • ECP5 VIP Processor Board with ECP5-85 FPGA for optimized image signal processing
  • HDMI VIP Output Bridge Board for seamless connection to HD displays
  • On-board USB programming interface eliminates the need for external programming hardware
  • Includes dual MIPI CSI-2 to 1080p HDMI demo
  • Free evaluation version of Helion IONOS ISP available for download
  • Lattice ISP Reference Design and Demo
China Electronics Market 2017 Editor Choice Award

Jump to

Video

Embedded Vision Development Kit UnboxingExpand Image

Embedded Vision Development Kit

We have combined the bridging capability of our CrossLink FPGA, the low-power, small form factor ECP5 and the high-resolution benefits of our HDMI ASSP, onto this modular platform. Learn about the specs of this development kit and let us help you enable flexible connectivity and energy efficient image processing for robotics, drones, ADAS, smart surveillance and AR/VR systems.
Dual Camera Demo Using Lattice Embedded Vision KitExpand Image

Dual Camera Demo Using Lattice Embedded Vision Kit

The dual camera demo showcases how Lattice's Embedded Vision Kit can merge the images of two sensors and display video output through HDMI. This is a great demo for designers who are considering implementing embedded vision applications.
Video Interface PlatformExpand Image

Components for Embedded Vision Designs

Looking to create a prototype for your embedded vision design? We break down the necessary components and show you how our Embedded Vision Kit can help.

Kit Contents

  • ECP5 VIP Processor Board
  • CrossLink VIP Input Bridge Board
  • HDMI VIP Output Bridge Board
  • Power Supply 12V
  • Quick Start Guide
  • Embedded Vision Development Kit Diamond License Information
    • If you currently do not have access to the award-winning Lattice Diamond design software, Lattice would like to offer you a special 1-year license, that enables design for the ECP5UM-85F FPGA featured on the ECP5 VIP Processor Board in the Embedded Vision Development Kit. To request this license, please follow instructions included with your Embedded Vision Development Kit. Please note that this license is valid for Diamond design software and can be used only with the Embedded Vision Development Kit. This is a limited-time offer.

Board Photos

Combined Side ViewExpand Image

Combined Board Side View 1

Combined Side ViewExpand Image

Combined Board Side View 2

CrossLink LIF-MD6000 Input Sensor Board Top ViewExpand Image

CrossLink VIP Input Bridge Board Top View

CrossLink LIF-MD6000 Input Sensor Board Bottom ViewExpand Image

CrossLink VIP Input Bridge Board Bottom View

CrossLink LIF-MD6000 Input Sensor Board Side ViewExpand Image

CrossLink VIP Input Bridge Board Side View

ECP5-85 Processor Board Top ViewExpand Image

ECP5 VIP Processor Board Top View

ECP5-85 Processor Board Bottom ViewExpand Image

ECP5 VIP Processor Board View

ECP5-85 Processor Board Side ViewExpand Image

ECP5 VIP Processor Board Side View

SiI1136 HDMI Output Bridge Board Top ViewExpand Image

HDMI VIP Output Bridge Board Top View

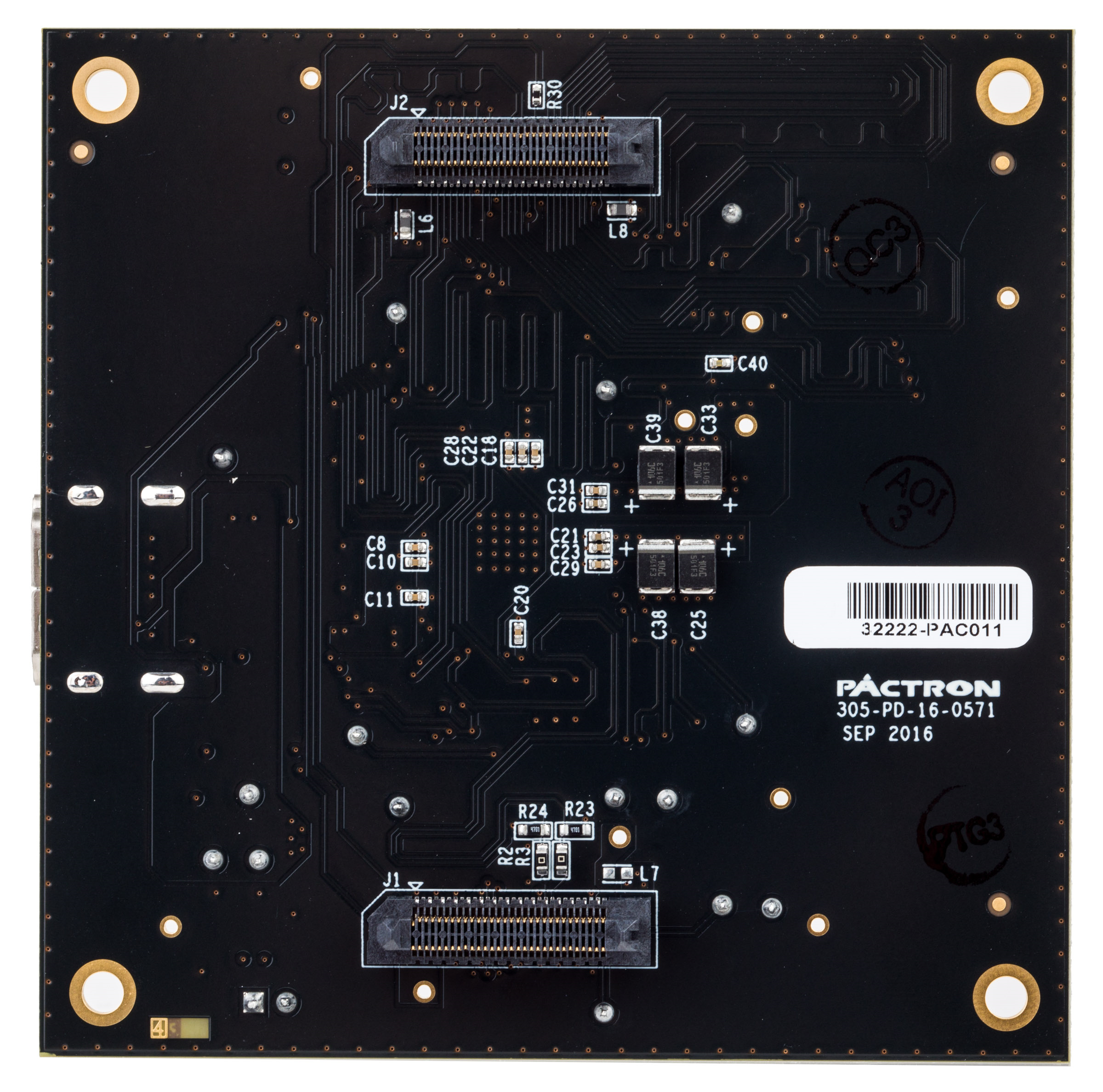

SiI1136 HDMI Output Bridge Board Bottom ViewExpand Image

HDMI VIP Output Bridge Board Bottom View

SiI1136 HDMI output bridge board Side ViewExpand Image

HDMI VIP Output Bridge Board Side View

Ordering Information

  • Ordering Part Number: LF-EVDK1-EVN
  • Click here to find an authorized Lattice distributor near you
  • Click here to order now from the Lattice Online Store

Awards

ACE 2017 Finalist AwardExpand Image

Annual Creativity in Electronics Awards 2017

Development Kits Finalist
Golden Mousetrap Awards 2018Expand Image

Golden Mousetrap Awards 2018

Automation and Motion Control - Sensors, Vision Systems, Feedback Devices & Peripherals Finalist

Documentation

Quick Reference
Information Resources
Downloads
TITLE NUMBER VERSION DATE FORMAT SIZE
HDMI VIP Output Bridge Board Evaluation Board User Guide
FPGA-EB-02003 1.1 6/7/2017 PDF 646.9 KB
Lattice Embedded Vision Development Kit User Guide
FPGA-UG-02015 1.3 11/15/2018 PDF 2 MB
CrossLink VIP Input Bridge Board Evaluation Board User Guide
FPGA-EB-02002 1.4 3/14/2019 PDF 1.2 MB
Programming Cable User Guide
Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables. 		FPGA-UG-02042 26.4 5/29/2020 PDF 1.4 MB
Helion ISP for Lattice ECP5
3.0 7/27/2017 PDF 2.1 MB
Embedded Vision Development Kit Quick Start Guide
QS042 1.0 11/30/2017 PDF 1.7 MB
IONOS Overview
8.0 1/1/0001 PDF 12.3 MB
Helion ISP Demo Quick Start
1/1/0001 PDF 1.2 MB
ECP5 VIP Processor Board Evaluation Board User Guide
FPGA-EB-02001 1.5 1/1/2021 PDF 3.5 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
VIP Product Brochure
IO266 1.0 5/16/2018 PDF 1.2 MB
Embedded Vision Solutions Product Brochure
I0260 2.0 11/30/2017 PDF 10.2 MB
Product Selector Guide
I0211 28.0 12/10/2020 PDF 10 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
SOLVING INTELLIGENCE, VISION & CONNECTIVITY CHALLENGES AT THE EDGE WITH ECP5™ FPGAs
WP0010 1.0 12/19/2017 PDF 3.9 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Dual CSI-2 Camera to HDMI Bridge Demo
2.0 2/12/2018 ZIP 2.5 MB
DDR3 Demo for ECP5 VIP Processor Board
1.1 1/1/2021 ZIP 5 MB
TITLE NUMBER VERSION DATE FORMAT SIZE
Helion IONOS Configuration GUI 32-bit
1/1/0001 MSI
Helion IONOS Configuration GUI 64-bit
1/1/0001 MSI
CrossLink Bitstream for Helion IONOS ISP
1/1/0001 BIT 159.7 KB
ECP5 Bitstream for Helion IONOS ISP
1/1/0001 BIT 2 MB
