  • Image Sensor Bridge

    Reference Design

    Image Sensor Bridge

    Interfaces a CMOS camera to a Digital Video Port (DVP) for a low-power low-footprint solution.
    Image Sensor Bridge
  • 2D Scaler

    IP Core

    2D Scaler

    Highly-configurable design to convert input video frames of one size to output video frames of a different size
    2D Scaler
  • Tri-Rate Serial Digital Interface Physical Layer

    IP Core

    Tri-Rate Serial Digital Interface Physical Layer

    A complete SDI PHY SERDES-based interface bridging high-speed SDI serial data to formatted parallel video data. Compliant to numerous SMPTE standards.
    Tri-Rate Serial Digital Interface Physical Layer
  • Sensor Extender

    Reference Design

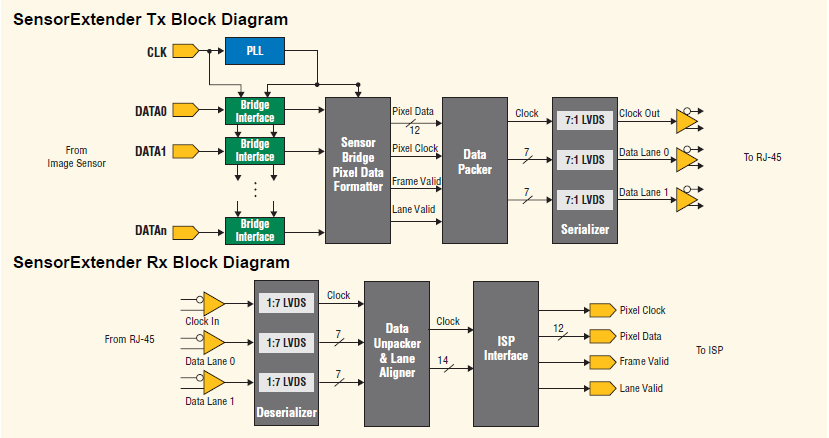

    Sensor Extender

    Transmits 720p60 or 1080p30 video over 8 meters of CAT5e/6 cable using two MachXO2 FPGAs, one next to the image sensor and the other just before the ISP.
    Sensor Extender
  • Sony Sub-LVDS to MIPI CSI-2 Sensor Bridge

    Reference Design

    Sony Sub-LVDS to MIPI CSI-2 Sensor Bridge

    Bridges serial Sub-LVDS interface to MIPI CSI-2
    Sony Sub-LVDS to MIPI CSI-2 Sensor Bridge

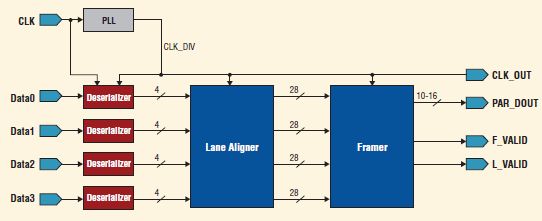

  • Aptina HiSPi to Parallel Sensor Bridge

    Reference Design

  • Dual HiSPi Sensor Interface Bridge

    Reference Design

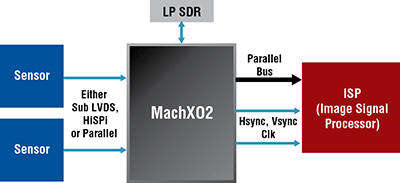

    Dual HiSPi Sensor Interface Bridge

    Merges two video streams into a single one. Supports multiple sensor types - HiSpi, sub-LVDS or Parallel
    Dual HiSPi Sensor Interface Bridge
  • Panasonic Area Sensor-to-Parallel Bridge

    Reference Design

    Panasonic Area Sensor-to-Parallel Bridge

    Converts sub-LVDS video data to a parallel format. Targeted to Panasonic MN34041 or MN34081, but adaptable to other sensors.
    Panasonic Area Sensor-to-Parallel Bridge
  • 7:1 LVDS Video Interface for MachXO2/3 and ECP5

    Reference Design

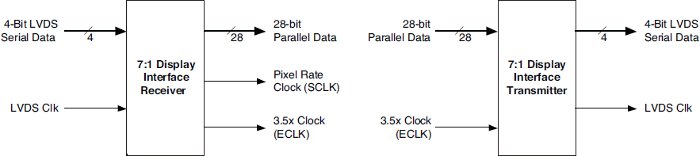

    7:1 LVDS Video Interface for MachXO2/3 and ECP5

    Implements standard 7:1 LVDS interfaces using the FPGA I/O structure
    7:1 LVDS Video Interface for MachXO2/3 and ECP5
  • Sony subLVDS to Parallel Bridge

    Reference Design

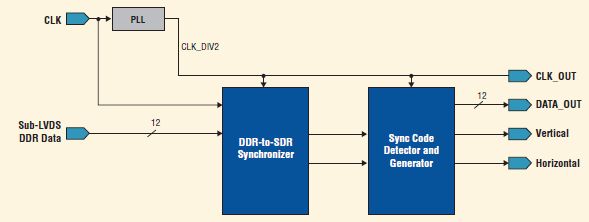

    Sony subLVDS to Parallel Bridge

    Provides a bridge from subLVDS sensors to parallel data for futher processing.
    Sony subLVDS to Parallel Bridge
  • Display Interface Multiplexer

    IP Core

    Display Interface Multiplexer

    Select asynchronous LVDS video streams (OpenLDI or FPD-link or DFP) for output by first converting them to parallel, multiplexing and reconverting to serial.
    Display Interface Multiplexer
  • CSI2-to-Parallel Bridge Board

    Board

    CSI2-to-Parallel Bridge Board

    No longer available - for reference only. For development with Sony IMX169 Image Sensor and the Lattice HDR-60 system + Requires HDR-60 Video Camera Base Board...
